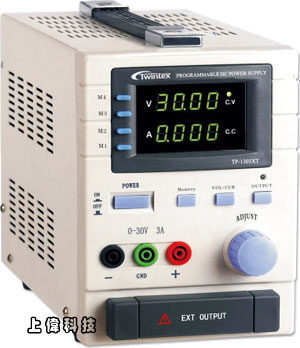

TP-1305XT 線性單輸出直流電源供應器
30V/5ADC可調、4組記憶式
功能特點
4位數綠色LED顯示電壓、電流
遠程取樣+s，-s端子
4組電壓 電流設定值存儲
斷電自動保護，限流保護功能，限流點設置, 輸出關斷功能
低漣波和低噪音，智慧型風扇
Features
u Highly accurate 4 digits LED display for voltage and current
u With +S and -S sampling connectors
u 4 sets of Memory & Recall function, 16 points sweep voltage and current storage
u Auto power off and current limit protection, setting current limit point, output standby function
u Low ripple & noise, intelligent cooling fan
規格
MODEL NAME：TP-1305XT
Output voltage：0~30V
Output current：0~5A
Constant voltage operation
Line regulation：CV≤0.01%+5mV
Load regulation：CV≤0.01%+5mV
Ripple&noise：CV≤1mV rms/3mVp-p
Temp.coefficient：CV≤0.05% +10mV
Constant current operation
Line regulation：CC≤0.05% +5mA
Load regulation：CC≤0.05% +5mA
Ripple&noise：CC≤0.05% +10mA
Temp.coefficient：CC≤0.1% +10mA
Indicator meter
Voltmeter display range：30V
Display resolution：10mV
Display accuracy：≤0.1% +10mV
Ammeter display range：5A
Display resolution：1mA
Display accuracy：≤0.1% +10mA
Display mode：4 1/2 Digits LED display
Power source：110V/220V±10%, 47~63Hz
Operation temp.&humidity：0℃~40℃, <80%
Storage temp.&humidity：-20℃~70℃, <90%
Dimensions：130Wx190Hx270D mm
Weight：6.5kg
|
