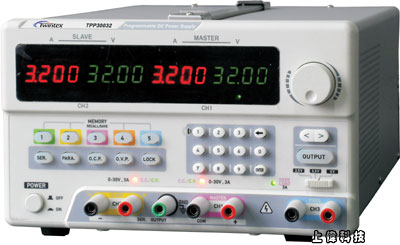

TPP-30052 可程式雙輸出直流電源供應器
0~30VDC*2/0~5ADC*2可調式+2.5VDC/3.3VDC/5VDC/3ADC固定式
功能特點
雙組可調輸出0~30V/ 0~5A
一組固定輸出 2.5V/3.3V/5V/3A
6 組面板設定存儲和呼叫
高解析度，極低的紋波和噪音
面板鎖定和輸出關斷功能，定電壓和定電流狀態自動切換
過壓、過流、過溫和短路等多重保護，過壓、過流參數值可以設定，過溫保護具有報警功能
飛梭旋鈕和數位按鍵輸入
標配USB或RS232介面，選配GPIB介面，提供標準的SCPI指令集，支援VISA驅動
Features
l Two adjustable outputs 0~30V/0~5A
l One fixed output 2.5V/3.3V/5V/3A
l 6 sets panel setting save&recall
l High resolution, extreme low ripple & noise
l Panel lock, output ON/OFF, auto CC & CV switch
l OVP, OCP, OHP, short circuit protection; preset OVP & OCP value, OHP alarm function
l Rotary dial and numeric keypad input
l USB/RS232 interface, GPIB interface (optional), with standard SCPI commend, support VISA drive
規格
|
Model
|
TPP30052
|
|
Output voltage
|
0~30Vx2
|
|
Output current
|
0~5Ax2
|
|
Constant voltage operation
|
|
Load regulation
|
CV≤0.01%+3mV
|
|
Line regulation
|
CV≤0.01%+3mV
|
|
Ripple & Noise
|
≤1mVrms
|
|
Temperature coefficient
|
≤300ppm/℃
|
|
Constant current operation
|
|
Load regulation
|
CC≤0.2%+3mA
|
|
Line regulation
|
CC≤0.2%+3mA
|
|
Ripple & Noise
|
≤3mArms
|
|
Programmable Control
|
|
Programmable resolution
|
Voltage: 10mV; current: 1mA.
|
|
Programmable accuracy
|
Voltage
|
Preset voltage*0.03%+10mV
|
|
Current
|
Preset current*0.5%+5mA
|
|
OVP
|
Preset voltage*0.03%+20mV
|
|
OCP
|
Preset current*0.5%+20mA
|
|
Programmable interface
|
USB or RS232 (standard), GPIB (optional)
|
|
Storage & Recall
|
6 sets (1 set for power off storage)
|
|
Commend processing time
|
<50ms
|
|
CH3 Output
|
|
Output
|
Fixed 2.5V/3.3V/5V selectable±1%, 3A
|
|
Regulation
|
Load regulation≤5mV Line regulation≤15mV
|
|
Ripple & Noise
|
≤1mVrms
|
|
Display
|
|
Display mode
|
4 digit LED display
|
|
Accuracy
|
Voltmeter
|
≤±0.03%+20mV
|
|
Ammeter
|
≤±0.5%+15mA
|
|
Resolution
|
Voltage: 10mV; current: 1mA
|
|
Dimension
|
375D*265W*175H mm
|
|
Weight
|
11kg
|
|
