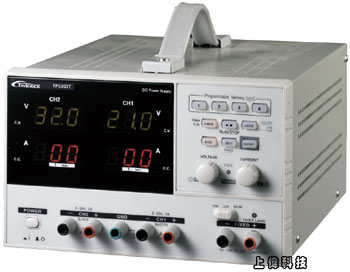

TP-3305T 可程式雙輸出直流電源供應器
0~30VDC*2/0~5ADC*2可調式+2.5VDC/3.3VDC/5VDC/3ADC固定式
功能特點
雙組可調輸出0~30V/ 0~5A
一組固定輸出 2.5V/3.3V/5V/3A
具有四組記憶儲存功能
具有面板鎖定功能
可預設電壓電流及密碼設定功能
恒壓、恒流、低紋波及噪音、低溫度漂移
可在機器內部設定串並聯模式
具有時間設定功能，時間設定範圍1秒~59分59秒
Features
l Two channel adjustable outputs 0~30V/0~5A
l One fixed 2.5V/3.3V/5V/3A output
l 4 sets panel settings save&recall
l Panel lock, panel password setting
l Preset voltage and current limit points
l Constant voltage, constant current, low ripple & noise, low temperature drift
l Auto CC and CV switch internally
l Programmable time control, time range 1sec.~59min. 59sec.
規格
|
Model
|
TP3305T
|
|
Output voltage
|
0~30VX2
|
|
Output current
|
0~5AX2
|
|
Constant voltage operation
|
|
Line regulation
|
CV≤0.02%+3mV
|
|
Load regulation
|
CV≤0.02%+5mV
|
|
Ripple&noise
|
≤5mVrms (5Hz~1MHz)
|
|
Recovery time
|
≤100uS (50% load variable, min. load 0.5A)
|
|
Temperature co-efficient
|
≤300ppm/℃
|
|
Programmable control
|
|
Programmable point
|
4
|
|
Programmable time
|
1sec.~59min. 59sec.
|
|
Time accuracy
|
±1sec.
|
|
Single/continuous
|
Continuous
|
|
Rise time
|
10mS~250mS (empty load, or 0.5A load)
|
|
Fall time
|
1.0S (empty load)； 10mS~250mS (0.5A load)
|
|
CH3 output (TP3303T only)
|
|
Output voltage
|
Fixed 2.5V, 3.3V, 5V selectable
|
|
Output current
|
Fixed 3A
|
|
Line regulation
|
≤5mV
|
|
Load regulation
|
≤15mV
|
|
Ripple&noise
|
≤2mVrms
|
|
Insulation degree
|
Between chassis and output terminal: ≥20MΩ/500VDC
|
|
Between chassis and AC cord: ≥30 MΩ/500VDC
|
|
Display
|
|
Voltmeter
|
3 1/2 digit LED display, accuracy ≤±0.5%+2d
|
|
Ammeter
|
3 1/2 digit LED display, accuracy ≤±0.5%+2d
|
|
Display resolution
|
Voltmeter: 100mV Ammeter: 10mA
|
|
Weight
|
7.0kg
|
|
Dimension
|
300D*220W*150H mm
|
|
