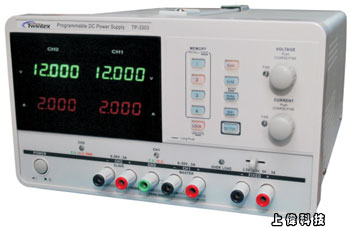

TP-3305 可程式雙輸出直流電源供應器
0~30VDC*2/0~5ADC*2可調式+2.5VDC/3.3VDC/5VDC/3ADC固定式
功能特點
雙組可調輸出0~30V/ 0~5A
一組固定輸出 2.5V/3.3V/5V/3A
最小解析度1mV/1mA
4組面板設定記憶
面板鎖定功能，輸出關斷功能
電壓、電流預設功能，密碼設定功能
定電壓、定電流，低紋波噪音，低溫度漂移
可在機器內部設定串並聯模式
USB程式控制介面
Features
l Two independent adjustable outputs: 0~30V/5A*2
l One fixed output 2.5V/3.3V/5V/3A
l Minimum resolution: 1mV/1mA
l 4 sets panel settings save & recall
l Panel lock function, output standby function
l Preset voltage, current and password
l Constant voltage, constant current, low ripple&noise, low temperature drift
l Tracking parallel and tracking serial to be set inside the instrument
l USB interface
規格
|
Mode
|
TP-3305
|
|
Output
|
0-30V/5A x 2
|
|
Constant voltage operation
|
|
Line regulation
|
≤0.02%+3mV
|
|
Load regulation
|
≤0.02%+5mV
|
|
Ripple&Noise
|
≤2mV rms
|
|
Temperature co-efficient
|
≤300PPm/℃
|
|
Constant current operation
|
|
Line regulation
|
≤0.2%+3mA
|
|
Load regulation
|
≤0.3%+5mA
|
|
Ripple&Noise
|
≤3mA rms
|
|
Tracking parallel
|
|
Line regulation
|
≤0.01%+3mV
|
|
Load regulation
|
≤0.02%+5mV
|
|
Tracking serial
|
|
Line regulation
|
≤0.01%+5mV
|
|
Load regulation
|
≤300mV when there is positive and negative supplies, CH2 tracking error≤CH1 output×0.5%+10Mv (no load, add load regulation≤300 mV)
|
|
CH3 output
|
|
Regulation
|
Line regulation≤5mV, Load regulation≤15mV
|
|
Ripple&Noise
|
≤2mV rms
|
|
Output voltage
|
2.5V, 3.3V, 5V (selectable)
|
|
Output current
|
3A
|
|
Protection
|
Current limit protection, short circuit protection
|
|
Insulation
|
Between base and output terminal≥20MΩ/500VDC
|
|
Between base and power cord≥30MΩ/500VDC
|
|
Display
|
|
Ammeter
|
Two 4-digit LED meters
|
|
Voltmeter
|
Two 5-digit LED meters
|
|
Display resolution
|
Vometer: 1mV Ammeter: 1mA
|
|
Display accuracy
|
Voltmeter: ±(0.03% of reading +10 digits)
Ammeter: ±(0.3% of reading +10 digits)
|
|
Dimension
|
300 x 220 x 148mm
|
|
Weight
|
8kg
|
|
