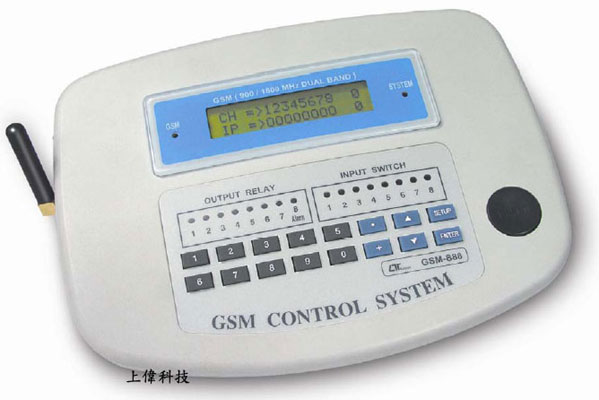

GSM-888 GSM行動電話遠端測量/控制/警示系統
特色
利用GSM手機做無線雙向溝通 , 以簡訊為溝通介面 , 互傳訊息
使用GSM手機做無線單向溝通 , 以手機簡訊下達控制指令
內建保密防干擾裝置 , 非主機設定之手機號碼 , 皆無法侵入此系統
具有極佳之擴充性 , 可隨時更改輸入信號(傳感器) , 做新系統監控
GSM-888 透過GSM行動電話在世界各地任何地方 控制/ 監控/ 警示其設備，沒有距離限制。
主機具有 8組類比信號輸入(4-20 mA)，能結合工業傳送器(DC 4~20mA)使用。 ' 8組Relay輸出 ' 8組偵測開關輸入，常開正常，關閉警報。
8組類比輸入︰ 此系統具有警報警示功能 , 利用主機設定上 / 下限警示值
可透過SMS簡訊設定類比輸入警報開或關(高/低值警報)。
可透過SMS簡訊設定輸入開關警報開或關(關閉警報)。
可透過SMS簡訊設定繼電器輸出開或關。
點陣式 LCD 顯示類比輸入值、開關輸入、及繼電器輸出狀態。
所有設定皆儲存於EEPROM IC，不會遺失。
行動電話隨時可叫出所有頻道的測量值，開關輸入的狀態和繼電器輸出。
可預置2組電話號碼.，警報時 SMS 簡訊將順序寄給此 2 個用戶。
內建 GSM 雙頻 900/1800MHz 模組。
經由行動電話將 SMS 簡訊命令寄給主機後，主機會以SMS 簡訊確認的消息回傳給行動電話，安全無損失。
智能化的應用，革新，寬帶，沒有限制。
需插入一張SIM卡 , 方可操作使用
Size：193 X 149 X 46mm
FEATURES
Control/Monitor/Alarm via GSM mobile phone, no distance limitation. User can control/monitor/alarm their device from over the world.
8 channels Analog input ( 4 -20 mA ), can cooperate full line industrial 4-20 mA transmitters.
8 Relay outputs.
8 Switch inputs, normal open, close alarm.
8 Analog inputs : system can preset 4 mA and 20 mA input value according the real measuring value and setting display unit. It can read actual measuring data via the SMS ( Short Message ) requesting, such as CH1= 28.0 C. CH2=53.7 %RH, CH3=7.01 pH...... CH8= 230.5 ACV.
Setting Analog input alarm ( High alarm, Low alarm ) to enable or disable via SMS.
Setting Input switch alarm ( close alarm ) to enable or disable via SMS.
Relay output On/Off setting via SMS.
Dot matrix LCD display, show Analog input value, Switch input and Relay output status.
All setting value will be saved into EPROM IC, no loss.
Mobile telephone can call all channel measuring value, status of Switch input and Relay output at any time.
Can default two telephone no., alarm SMS can be send to two users.
Build GSM mobile modem ( dual band ).
After the SMS command send by mobile phone, the confirm message will be send back to the mobile, safety and no loss.
Intelligent application , innovation, wide range, no limitation.
Full line industrial 4-20 mA transmitters are available from LUTRON : ACV, ACA, DCV, DCA, Hz, WATT, VAR, Power Factor, Humidity, Temperature ( type K, Pt 100 ohm ), Pressure, Vibration, Sound Level, RPM, pH, Conductivity, Dissolved, TDS, ORP, RPM, Air velocity, Light, Clamp current, Load Cell, Potential, Angle, EMF, IR, UV light, Moisture… , detail please refer the LUTRON Transmitter catalog
產品應用
工業遙控監視/ 控制/ 警報系統。
工業安全系統。
家庭安全系統。
建造監督。
工業體系。
抽水站。
發電廠
農業 。
畜牧業。
給水系統。
交通系統。
鐵路系統/ 車輛。
能源體系。
淨水廠。
APPLICATION
Industrial remote monitor/controller/alarm system.
Industrial security system.
Home security system.
Building supervision.
Industrial systems.
Pumping stations.
Power station.
Agriculture usage.l
Animal husbandry.
Water supply systems.
Traffic systems.
Railway systems/Vehicles.
Energy systems.
Water clarification.
規格
顯示幕 (DISPLAY)
- Dot-matrix LCD with back light 16 characters x 2 line.
開關輸入 (Switch inputs)
- Number : 8 inputs
- Reaction time : 200 mS, min.
- Status : Default open, Close will alarm
4 ~ 20mA 類比輸入 (Analog input 4 to 20 mA)
- Number : 8 channels
- Input impedance : 125 ohm
- Resolution : 12 bits A/D converter
- Setting by front buttons : 4 mA. 20 mA setting ; Unit setting ; High/Low alarm value setting
繼電器輸出 (Relay outputs)
- Number : 8 relays
- Function : Relay 1 to Relay 7 can control by mobile via SMS Relay 8 is the alarm relay used to connect to field alarm system
- Max. load : 1 ACA/250 ACV ; 1 DCA/24 DCV
GSM 模組 (GSM Modem)
- 900/1800 MHz, dual band.
標準 (Standard)
- CE conformity
操作溫度 (Operating Temperature)
- 0 to 50 ℃ ( 32 to 122℉ )
操作溼度 (Operating Humidity)
- Less than 80% RH.
供應電源 (Power supply)
- DC 9V.
消耗電源 (Power consumption)
- Less than 400 mA DC.
尺寸大小 (Size)
- 193 x 149 x 46 mm ( 7.6 x 4.9 x 1.8 inch ).
重量 (Weight)
- 592 g ( 1.3 LB ).
附件組合 (Accessories includes)
- Operation manual......................... 1 PC
- AC ( 100 -240 V )/DC ( 9V, 1 Amp ) power adapter.............................. 1 PC
- Antenna ...................................... 1 PC
選購配件 (Optional Accessories)
- Full line 4 to 20 mA industrial transmitters.
|
