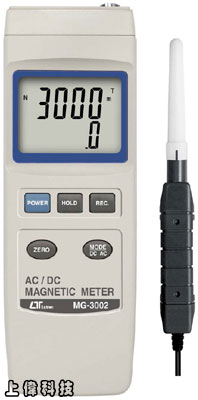

MG-3002 高斯計 (磁力計)
簡介
-
測量範圍： DC：0.1 高斯 ~ 30000 高斯
AC (50/60Hz)：0.1 高斯 ~ 15000 高斯
-
精確度：±5%
-
高斯(Gauss)/毫泰斯(mT)單位選擇
-
直流(DC) 及交流(AC) 毫高斯測量
-
磁性材料之磁力測量
-
具有 N/S 極性指示功能(DC)
-
讀值鎖定及記錄測量中之最大 / 最小值
-
RS-232 / USB 連接介面(軟體選購)
-
Size：200 X 68 X 30mm
FEATURES
Wide range, general purpose magnetic measurement. for industrial, mechanical, material, electrical, laboratory field usage.
Unit : G ( Gauss ), mT ( milli Tesla ).
DC and AC magnetic field measurement
DC Range : 300.00 mT/3000.0 mT. ; AC Range : 150.00 mT/1500.0 mT.
Resolution : 0.01/0.1 mT, 0.1/1 G.
N pole/S pole indicator.
Use Hall sensor with automatic Temp. compensation.
Zero button for DC magnetic function.
Separate probe, easy operation and convenient for remote measurement.
Data hold function for freezing the desired value on display.
Records Maximum and Minimum readings with Recall.
RS232/USB computer interface.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
Auto shut off is available to save battery life.
Power supply from batteries or DC 9V adapter in.
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm dual function LCD display.
測量單位 (Measurement Unit)
- mG : milligauss
- uT : micro Tesla
測量範圍 DC (Measurement Range, DC)
- mT Range 1 : 300.00 mT x 0.01 mT
- mT Range 2 : 3,000.0 mT x 0.1 mT
- G Range 1 : 3,000.0 G x 0.1 G
- G Range 2 : 30,000 G x 1 G
測量範圍 AC (Measurement Range, AC)
- mT Range 1 : 150.00 mT x 0.01 mT
- mT Range 2 : 1,500.0 mT x 0.1 mT
- G Range 1 : 1,500.0 G x 0.1 G
- G Range 2 : 1,500.0 G x 0.1 G
- 感應器 (Sensor)
- Hall sensor.
精確度 (Accuracy)
- DC : ± ( 5 % rdg. + 10 digit )
- AC : ± ( 5 % rdg. + 20 digit )
頻率反應 (Frequency Response)
- AC measurement : 50 Hz / 60 Hz
溫度補償 (Temp. Compensation for hall sensor)
- Probe head build the Temp. sensor for useing the ATC ( automatical Temp. compensatioon ).
電場方向 (Field Direction)
- Uniaxial.
讀值鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫(Memory Recall)
- Maximum & Minimum value.
顯示取樣時間 (Display Sampling Time)
- Approx. 1 second.
電源關閉 (Power off)
- Manual off by push button or Auto shut off to save battery life.
資料輸出 (Data Output)
- RS 232/USB PC serial interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temperature)
-
0 to 50 ℃.
操作溼度 (Operating Humidity)
-
Less than 85 %RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, Alkaline/heavy duty type or equivalent.
電源電流 (Power Current)
- Approx. DC 20.5 mA .
重量 (Weight)
- Approx. 270 g/0.60 LB. ( include battery & probe )
體積 (Dimension)
- Main instrument : 200 x 68 x 30 mm (( 7.9 x 2.7 x 1.2 inch ).
- Probe : 198 x 25 x 19 mm ( 7.8 x 1.0 x 0.7 inch ).
附件 (Accessories Included)
- Instruction manual..............................1 PC
- Magnetic Probe....................................... 1 PC
- Hard Carrying case, CA-06...................1 PC
選購附件 (Optional Accessories)
- RS232 cable, UPCB-02
- USB cable, USB-01
- Data Acquisition software, SW-U801-WIN
|
