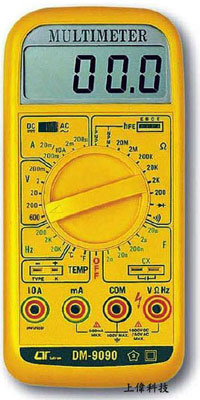

DM-9090 多功能數字電錶
簡介
-
交直流電壓：0 ~ 600V ±0.8%
-
交直流電流：0 ~ 10A ±1%
-
電阻：0 ~ 20M歐姆 ±0.8%
-
電容：0.1pF ~ 20uF ±2.5%
-
溫度：-40°C ~ 1000°C (0 ~ 1800°F) ±1%
-
頻率’電晶體’二極體’導通蜂鳴測試
-
Size：185 X 87 X 39mm
FEATURES
► Multi-function measurement : ACV, DCV, ACA, DCA, OHMS, CAPACITANCE, TEMP., Hz, DIODE, hFE, CONTINUITY BEEPER.
► Rotary function switch, easy operation.
► Large size LCD display.
► meet IEC safety requirement, & approval.
► Built in overload protection for any ranges.
► Fuse for overload protection.
一般規格
顯示 (Display)
- 18mm (0.7") LCD (Liquid Crystal Display), 3 1/2 digits, Max. indication 1999.
測量 (Measurement)
- 40 ranges covering DCV, ACV, DCA, ACA, ohms, CAPACITANCE, FREQUENCY, TEMPERATURE, hFE, DIODE, Continuity Beeper,
極性 (Polarity)
- Automatic Switching, '-' indicates negative polarity.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
輸入過載指示 (Over-input indicator)
- display shows '1' or '-1'.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type).
電源消耗 (Power Consumption)
- Approx. DC 3.6 mA.
體積 (Dimensions)
- 185x87x39 mm (7.3x3.4x1.5 inch).
重量 (Weight)
- 322 g/0.71 lb. (including battery).
附件 (Accessories Included)
- Red and Black Test Leads ..... 1 pair.
- 0.5 Amp Spare Fuse ............................. 1 PC.
- Instruction Manual ................. 1 PC.
選購附件及轉換器
- Temperature Probe : (Type K) TP-01, naked bead.
- Temperature Probe : (Type K) TP-02A. immerse, general purse
- Temperature Probe : (Type K) TP-03, high temperature.
- Temperature Probe : (Type K) TP-04, surface.
- Carry case : CA-03
- Carry case : CA-05A
- Plug : PL-03
- Test Lead : TL-02AS
- DCA. ACA CLAMP ADAPTER : CA-501, CA-502, CA-202, CA-203
- TACHOMETER ADAPTER : TA-601
- PRESSURE ADAPTER : PS-403
- HUMIDITY ADAPTER : HS-702
- SOUND ADAPTER : SL-406
- ANEMOMETER ADAPTER : AM-402
- LIGHT ADAPTER : LX-02
- EMF ADAPTER : EMF-824
- HIGH VOLTAGE PROBE : HV-40
電器規格 (23±5 ℃)
直流電壓 (DC Voltage)
| RANGE |
ACCURACY |
RESOLUTION |
INPUT IMPEDANCE |
OVERLOAD PROTECTION |
| 200mV |
± (0.5%+1d) |
100uV |
10M ohm |
500V DC, 350V AC, 15 secs |
| 2V |
± (0.8%+1d) |
1mV |
DC 600V
AC 600V
|
| 20V |
10mV |
| 200V |
100mV |
| 600V |
1V |
交流電壓 (AC Voltage) * FREQUENCY RESPONSE: 40Hz-500Hz, SINE WAVE SPEC. TESTED ON 60Hz/50Hz
| RANGE |
ACCURACY |
RESOLUTION |
INPUT IMPEDANCE |
OVERLOAD PROTECTION |
| 200mV |
± ( 1%+2d) |
100uV |
10M ohm |
500V DC, 350V AC, 15 secs |
| 2V |
1mV |
DC 600V
AC 600V
|
| 20V |
10mV |
| 200V |
100mV |
| 600V |
1V |
交/直流電流 (AC/DC Current) * FREQUENCY RESPONSE: 40Hz-500Hz, SINE WAVE SPEC. TESTED ON 60Hz/50Hz
| RANGE |
ACCURACY |
RESOLUTION |
VOLTAGE DROP |
OVERLOAD PROTECTION |
| 200uA |
DCA: ± (1%+1d)
ACA:± (1.2%+2d)
|
0.1uA |
ACA:AC200mV
DCA:DC200mV
|
0.5 A Fuse |
| 2mA |
1uA |
| 20mA |
10uA |
| 200mA |
100uA |
| 10A |
DCA:± (1.5%+2d)
ACA:± (1.5%+3d)
|
10mA |
UNFUSED |
電阻 (RESISTANCE)
| RANGE |
ACCURACY |
RESOLUTION |
OPEN CKT. VOLTAGE |
OVERLOAD PROTECTION |
| 200 ohm |
± (1%+3d) |
0.1 ohm |
3 V Max. |
AC 500V
DC 500V
( Protected by PTC )
|
| 2K |
± (0.8%+1d) |
1 ohm |
APPROX. 0.3 V Max. |
| 20K |
10 ohm |
| 200K |
100 ohm |
| 2000K |
1K ohm |
| 20M |
± (2%+2d) |
10K ohm |
電容 (CAPACITANCE)
| RANGE |
ACCURACY |
RESOLUTION |
TESTED FREQUENCY |
TESTED VOLTAGE |
| 2000pF |
± (2.5%+5d) |
1pF |
400Hz |
500mV |
| 20nF |
10pF |
| 200nF |
100pF |
| 2uF |
1nF |
| 20uF |
10nF |
溫度 (TEMPERATURE)
| RANGE |
RESOLUTION |
ACCURACY |
| -20℃ to 750℃ |
1℃ |
>0℃, ± (1% + 2dgt) To 300 ℃, (Over 550℉ 3%) |
| 0℉ to 1400℉ |
1℉ |
>32℉,± ( 1% + 3dgt) To 550 ℉, (Over 500 ℉ 3%) |
頻率 (FREQUENCY (Hz))
| RANGE |
MEASURING RANGE |
ACCURACY |
RESOLUTION |
INPUT SENSITIVITY |
MAX. INPUT VOLTAGE |
| 200Hz |
9-199.9 Hz
9-1999 Hz
0.9-19.99 kHz
|
±(1%+ 2d) |
0.1 Hz |
35mV RMS |
500V DC/AC |
| 2 KHz |
1Hz |
| 20KHz |
10Hz |
導通蜂鳴測試 (CONTINUITY BEEPER)
A CONTINUITY TEST BEEPER IS STANDARD. SO WHEN ARE CHECKING CIRCUITS FOR SHORTS OR OPENS, YOU DO NOT HAVE TO LOOK AT THE METER. THE BEEPER SOUNDS IF CONTINUITY IS PRESENT.
二極體 (Diode TEST)
- CIRCUIT VOLTAGE IS APPROX. DC 3V Max
電晶體 (TRANSISTOR hFE MEASUREMENT)
- 0 - 1000 hFE VALUES FO EITHER P.N.P. OR N.P.N. TRANSISTOR.
- * TEST CONDITION: BASE DC CURRENT APPROX. 10uA, VCE: APPROX. 2.8V.
|
|
|
