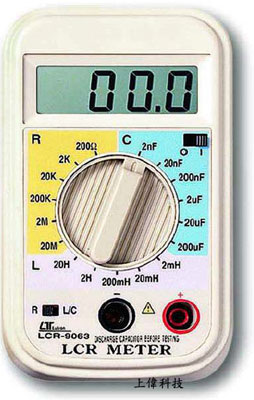

LCR-9063 經濟型LCR錶
簡介
-
３1/2液晶顯示器，最大顯示值1999
-
電感：1uH ~ 20H. 5檔 ±3%
-
電容：1pF ~ 200uF. 6檔 ±3%
-
電阻：0 ~ 20M歐姆. 6檔 ±2%
-
Size：120 X 72 X 37mm
FEATURES
A pocket, Battery operated, Inductance, Capacitance and Resistance Meter.
LSI-circuit provides high reliability and durability.
LCD display for clear readout even in bright ambient Ilight conditions.
Rotary switch function selector .
Color-coded panel for easy indentification of functions and ranges .
Low battery indicator.
一般規格
顯示 (Display)
- 13 mm (0.5") LCD, 3 1/2 digits. Max. reading 1999.
過載輸入顯示 (Over-input indicator)
- " 1 " mark indication.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery. heavy duty battery.
體積 (Dimensions)
- 120 x 72 x 37 mm .
重量 (Weight)
- 185 g/0.41 LB.
電源消耗 (Power Consumption)
- R - Approx. 8 mA.
- L - Approx. 9 mA.
- C - Approx. 9 mA.
附件 (Accessories Included)
- Test alligator clips .................. 1 pair
- Instruction Manual ................. 1 PC.
電器規格 (23±5 ℃)
電感 (Inductance)
| Range |
In-range Display |
Resolution |
Test Frequency |
Accuracy |
| * 2 mH |
0.02 mH-2 mH |
1 uH |
250 Hz |
± (3 % + 3 d) |
| 20 mH |
2 mH-20 mH |
10 uH |
250 Hz |
| 200 mH |
20 mH-200 mH |
100 uH |
250 Hz |
| 2 H |
0.2 H-2 H |
1 mH |
250 Hz |
± (5 % + 5 d) |
| 20 H |
2 H-20 H |
10 mH |
250 Hz |
- uH = micro Henry (10^-6 H).
- mH = mili Henry (10^-3 H).
- Zero stray inductance of 2 mH range (short ckt.) : 0 to -30 uH.
電容 (Capacitance)
| Range |
In-range Display |
Resolution |
Test Frequency |
Accuracy |
| * 2 nF |
10 pF-2 nF |
1 pF |
250 Hz |
± (3 % + 3 d) |
| 20 nF |
200 pF-20 nF |
10 pF |
250 Hz |
| 200 nF |
2 nF - 200 nF |
100 pF |
250 Hz |
| 2 uF |
.02 uF - 2 uF |
1 nF |
250 Hz |
| 20 uF |
0.2 uF - 20 uF |
10 nF |
250 Hz |
| 200 uF |
2 uF - 200 uf |
100 nF |
250 Hz |
- pF= pico Farad (10^-12 F) nF= nano Farad (10^-9 F)
- uF= micro Farad (10^-6 F)
- * Zero stray capacitance of 2 nF range (open ckt.) : 30 pF
電阻 (Resistance)
| Range |
Resolution |
Open Circuit Voltage |
Accuracy |
| 200 ohm |
0.1 ohm |
Approx.600 mV |
± ( 2 % + 3 d ) |
| 2 k |
1 ohm |
| 20 k |
10 ohm |
| 200 k |
100 ohm |
| 2000 k |
1 k |
| 20 M |
10 k |
Approx 300 mV |
備註 (Remark )
Though the internal test frequency is approx. 250 Hz. However the accuracy adjustment are executed as :
* For the capacitance ( 2 uF, 200 nF, 20 nF, 2 nF ) range, the acuracy adjustment is compared with the " Standard capacitor that tested under the 1 KHz frequency ".
* For the capacitance ( 20 uF, 200 uF ) range, the accuracy adjustment is compared with the " Standard capacitor that tested on the 100 Hz frequency ".
* For the inductance ( 2 mH, 20 mH, 200 mH, 2 H ) range, the accuracy adjustment is compared the " Standard inductor that tested on the 1 KHz ".
* For the inductance ( 20 H ) range, the calibration is compared the " Standard inductor that tested on the 100 Hz ".
|
