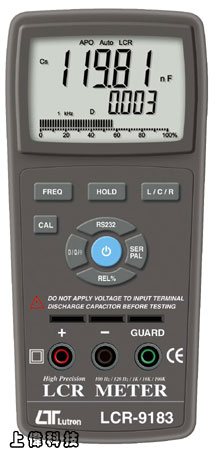

LCR-9183 專業型LCR錶
簡介
19999/1999位數雙視窗顯示器
自動判別 電感/電容/電阻及測量
電感：200.00uH ~ 2000.0H
電容：2000.0pF ~ 2.000uF
電阻：20.000 ~ 200.0M歐姆
串聯/並聯測量模式選擇
DCR 模式2000.0 ~200.0MΩ
測量頻率點：100Hz / 120Hz / 1KHz / 10kHz / 100KHz
測量 Ls/Lp/Cs/Cp 及 D/Q/θ /ESR 參數
可記錄最大值、最小值及讀值鎖定
Size：193 X 88 X 41mm
FEATURES
19,999/1,999 counts dual LCD display.
AutoLCR smart check and measurement.
Serial/Parallel modes are selectable.
Ls/Lp/Cs/Cp with D/Q/θ /ESR parameters.
Support DCR mode 1.00 Ω to 200.0 MΩ .
Five different test frequency are available : 100 Hz/120 Hz/1 KHz/10 KHz/100 KHz.
Test AC signal level : 0.6 V rms typically.
Test range : ( ex. F = 1 KHz ) - L : 200.00 uH to 2000.0 H
- C : 2000.0 pF to 2.000 mF
- R : 20.000Ω to 200.0 MΩ
Multi-level battery detector.
RS232/USB PC Computer interface.
Can default auto power off.
一般規格
顯示 (Display)
- LCD size：56.4 X 52.9 mm.
測試頻率 (Measurement)
- 100 Hz/120 Hz/1 KHz/10 KHz/100 KHz
功能 (Function)
- L/C/R Function selector
- Frequency selector
- D/Q/θ /ESR selector
損耗因素 (Dissipation factor)
- 0.000 to 999
品質因素 (Quality factor)
- 0.000 to 999
θ 值測試 (θ measurement)
- ± 90°
校正 (Calibration)
- Open/Short calibration
讀值鎖定 (Data Hold)
- Freeze the display reading
資料輸出 (Data output)
- RS232/USB PC computer interface
電源關閉 (Power off)
- Auto shut off saves battery life or manual off by push button
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 85% RH.
電源供應 (Power Supply)
- 006P DC 9V battery. heavy duty battery.
- DC 9V adapter input * AC/DC power adapter is optional.
電源消耗 (Power Consumption)
- DC 35 mA approximately
體積 (Dimensions)
- 193 x 88 x 41mm
重量 (Weight)
- 420 g * meter only
附件 (Accessories Included)
- Instruction Manual ................. 1 PC.
- Alligator clips................................1 Pair
選購附件 (Optional Accessories)
- SMD tester, SMDA-22
- SMD test clip, SMDC-21
- Holster, HS-03
- AC to DC 9V adapter
- Hard carrying case, CA-06
- Soft carrying case, CA-05A
電器規格 (23±5 ℃)
DCR 電阻 (Resistance)
| Range |
Accuracy |
Remark |
| 20 Ω |
± ( 0.8% + 5d ) |
After Short CAL. |
| 200 Ω |
± ( 0.8% + 5d ) |
|
| 2000 Ω |
± ( 0.8% + 5d ) |
|
| 20 KΩ |
± ( 0.8% + 5d ) |
|
| 200 KΩ |
± ( 0.8% + 5d ) |
|
| 2000 KΩ |
± ( 0.8% + 5d ) |
After Open CAL. |
| 20 MΩ |
± ( 1.5% + 5d ) |
After Open CAL. |
| 200 MΩ |
± ( 2.5% + 5d ) |
After Open CAL. |
Rp/Rs 電阻 (Resistance)
| Range |
Accuracy
100 Hz/120 Hz
|
Accuracy
1000 Hz
|
Accuracy
10 KHz
|
Accuracy
100 KHz
|
Remark |
| 20 Ω |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 2.5% + 5d ) |
After Short CAL. |
| 200 Ω |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
| 2000 Ω |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
| 20 KΩ |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
| 200 KΩ |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
| 2000 KΩ |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 3% + 5d ) |
After Open CAL. |
| 20 MΩ |
± ( 1.5% + 5d ) |
± ( 2.5% + 5d ) |
± ( 2.5% + 5d ) |
------------------- |
After Open CAL. |
| 200 MΩ |
± ( 2.5% + 5d ) |
± ( 6% + 5d ) |
|
|
After Open CAL. |
( Cp/Cs ) : D ≦ 0.1 電容 (Capacitance)
| Range |
Accuracy
100 Hz/120 Hz
|
Accuracy
1000 Hz
|
Accuracy
10 KHz
|
Accuracy
100 KHz
|
Remark |
| 20 pF |
± ( 2.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After Open CAL. |
| 200 pF |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
After Open CAL. |
| 2000 pF |
± ( 1.2% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
After Open CAL. |
| 20 nF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
| 200 nF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
| 2000 nF |
± ( 1.0% + 5d ) |
± ( 1% + 5d) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
| 20 uF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
| 200 uF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 2% + 5d ) |
------------------- |
After Short CAL. |
| 2000 uF |
± ( 2% + 5d ) |
± ( 2% + 5d ) |
|
|
After Short CAL. |
| 20 mF |
± ( 3% + 5d ) |
------------------- |
|
|
After Short CAL. |
( Lp/Ls ) : D ≦ 0.1 電感 (Inductance)
| Range |
Accuracy
100 Hz/120 Hz
|
Accuracy
1000 Hz
|
Accuracy
10 KHz
|
Accuracy
100 KHz
|
Remark |
| 20 uH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After Short CAL. |
| 200 uH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After Short CAL. |
| 2000 uH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
| 20 mH |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
| 200 mH |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
| 2000 mH |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
------------------- |
|
| 20 H |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
|
| 200 H |
± ( 1.0% + 5d ) |
± ( 1.5% + 5d ) |
|
|
|
| 2000 H |
± ( 2% + 5d ) |
------------------- |
|
|
After Open CAL. |
|
