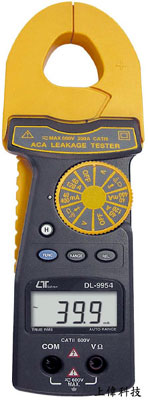

DL-9954 洩漏電流測試鉤錶(自動換檔)
簡介
-
交直流電流：0.01mA ~ 120.0A ±1.5%
-
交直流電壓：0.1mV ~ 600V ±0.8%
-
電阻：0.1 ~ 40M歐姆 ±1%
-
鉤部口徑25mm
-
讀值鎖定及導通蜂鳴測試
-
Size：190 X 64 X 33mm
FEATURES
High precision AC mA measurement, it is useful for AC mA leakage current measurement.
Measure AC mA on the inductive conductor.
Design meet IEC 1010 CATIII 600V safety requirement.
4000 counts, auto range and multi-functions.
Measurement for ACA, ACV, DCV, Ohms, Diode, Continuity beeper.
True RMS measuring reading for ACV and ACA function.
Two AC leakage current range : 40 mA, 400 mA .
Two AC current range : 40 A, 120 A.
Data hold.
Relative measurement.
Crystal time base, high quality.
LCD display allows clear readout-out even at high ambient light level.
LSI circuit provides high reliability and durability.
Overload protection circuit is provided for all range.
Compact & heavy duty ABS housing fireproof plastic case.
一般規格
顯示 (Display)
- 10.8 mm ( 0.39" ) LCD, 3 1/2 digits, Max. indication 4000.
測量範圍 (Measurement Range)
- ACA, ACV, DCV, Ohms, Diode, Continuity beeper, Relative.
極性 (Polarity)
- Automatic Switching, '-' indicates negative polarity.
輸入過載 (Over-input)
- Indication of " OL ".
取樣時間 (Sampling Time)
- Approx. 0.35 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
體積 (Dimensions)
- HWD : 191 x 64.5 x 36.1 mm ( 7.5 x 2.5 x 1.4 inch )
重量 (Weight)
- 251 g/0.55 LB ( including battery ).
鉤部最大口徑 (Max. Fork Jaw Open Size)
- 22.3 mm ( 0.88 inch ) Dia.
附件 (Accessories Included)
- Operation manual...................... 1 PC.
- Test lead (red & black).............. 1 PC.
選購附件及轉換器
- Carrying case, CA-52A
- Light Adapter
- Anemometer Adapter
- Pressure Adapter
- Humidity Adapter
- Tachometer Adapter
- Sound level Adapter
- High Voltage Probe.
電器規格 (23±5 ℃)
| Function |
Range |
Resolution |
Accuracy |
Overload Protection |
| DCV
ACV
( true rms )
|
400 mV
DC only
|
0.1 mV |
± ( 0.5 % + 2d ) |
AC/DC 600V |
| 4 V |
0.001V |
DCV :± ( 1 % + 2d )
ACV :± ( 1.2 % + 5d )
|
| 40 V |
0.01V |
| 400 V |
0.1 V |
| 600 V |
1 V |
| ACA
Leakage
( true rms )
0.1 to 400 mA
|
40 mA |
0.01mA |
± ( 1.5 % + 3d ) |
AC 120 A |
| 400 mA |
0.1mA |
| ACA
( true rms )
0.01 to 120 A
|
0 to 39.99 A |
0.01 A |
± ( 1.5 % + 3d ) |
| 40 to 100 A |
0.1 A |
| 100.0 to 120 A |
0.1 A |
± ( 3 % + 3d ) |
| Ohms |
400 ohm |
0.1 ohm |
± ( 1 % + 5d ) |
AC / DC 400 V |
| 4 K ohm |
1 ohm |
| 40 K ohm |
10 ohm |
| 400 K ohm |
100 ohm |
| 4 M ohm |
1 K ohm |
± ( 2 % + 2d ) |
| 40 M ohm |
10Kohm |
± ( 3.5 % + 5d ) |
Remark
- * True RMS measuring reading for ACV and ACA function.
- * Input impedance for ACV & DCV range is 10 Meg ohm.
- * ACA, ACV frequency response is from 40 to 1 KHz.
- * ACA, ACV specification be tested on sine wave 50/60 Hz.
Diode
- Short/non conductance, good/defect test.
Continuity
- If measuring resistance is less than 10 ohm, the beeper will sound .
|
