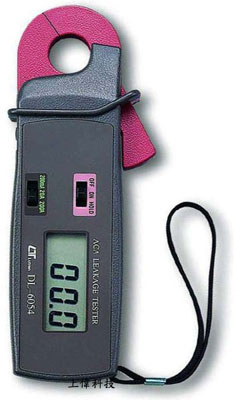

DL-6054 洩漏電流測試鉤錶

簡介

• 交流電流：

                                 0.1mA ~ 200mA

                                 0.01A ~ 20A

                                 0.1A ~ 200A

• 精確度：±1.5%

• 讀值鎖定功能

• 鉤部口徑19mm

• Size：180 X 47 X 35mm

FEATURES

► High precision AC mA measurement, it is useful for AC mA leakage current measurement.

► Measure AC mA on the inductive conductor.

► Miniature type, easy to carry out & operation.

►  High precision for low ACA leakage current measurement.

► Built-in DATA HOLD function.

► Crystal time base, high quality.

► LCD display allows clear readout-out even at high ambient light level.

► LSI circuit provides high reliability and durability.

► Overload protection circuit is provided for all range.

► Design to meet IEC 1010 safety requirement.

► Compact, light weight and excellent operation.

一般規格

顯示 (Display)

13 mm ( 0.5" ) LCD, 3 1/2 digits. Max. indication 1999.

測量及解析度 (Measurement & Resolution)

200 AC mA x 0.1 mA

20 ACA x 0.01 A

200 ACA x 0.1 A

讀值鎖定 (Data Hold)

Available to hold the measuring values on the display.

精確度 (Accuracy)

± ( 1.2 % + 5 d ) * Specification be tested on sine wave 50, 60 Hz.

時脈 (Time Base)

Quartz crystal, 32768 Hz.

過載線路保護 (Overload Circuit Protection)

300 ACA max. ( within 1 minute for 20A, 200A range ).

歸零調整 (Zero Adjustment)

Automatic adjustment.

輸入過載 (Over-input)

Display shows '1'.

取樣時間 (Sampling Time)

Approx. 0.4 second.

操作溫度 (Operating Temp.)

0 ℃ to 50 ℃ (32 ℉ to 122 ℉).

操作溼度 (Operating Humidity)

Less than 80% RH.

電池  (Battery)

006P DC 9V battery.

電源消耗 (Power Consumption)

Approx. DC 1.2 mA.

體積 (Dimensions)

HWD 180 x 47 x 35 mm. ( 7.1 x 1.9 x 1.4 inch. )

重量 (Weight)

200 g/0.44 LB ( including battery ).

鉤部口徑 (Conductor Size)

19 mm Dia

附件 (Accessories Included)

Operation manual...................... 1 PC.

Carrying case.............................................. 1 PC.
