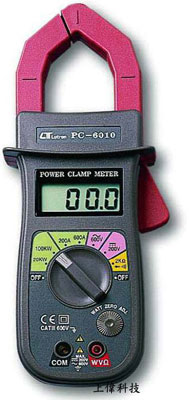

PC-6010 鉤式功率錶

簡介

• 交流瓦特 (AC)： 20 ~ 100kWatt ±3%

• 鉤式交流電流：0 ~ 600A ±2%

• 直流電壓：0V ~ 200V ±0.8%

• 交流電壓：0V ~ 600V ±1%

• 電阻：0 ~ 2000歐姆 ±1%

• 鉤部口徑37mm

• Size：230 X 74 X 38mm

FEATURES

► Watt ( true power ), ACV, DCV, ACA, OHMS, Diode.

► Watt measurement via the inductive clamp jaw.

► Wide range for power measurement, max. value up

► Design meet IEC 1010 safety requirement.

► Heavy duty ACA clamp meter, 600 A max. range.

► Compact & heavy duty ABS housing plastic case.

► Measure AC current by the inductive conductor.

► LSI circuit provides high reliability and durability.

► LCD display, clear readout

► Overload protection circuit is provided for all range.

一般規格

顯示 (Display)

13 mm (0.5") LCD, 3 1/2 digits. Max. indication 1999.

測量 (Measurement)

Watt (true power). DCV, ACV, ACA, ohms, Diode.

極性 (Polarity)

Automatic Switching, '-' indicates negative polarity.

電流感應器 (Current Sensor)

Hall effect sensors.

輸入過載指示 (Over-input indicator)

display shows '1' or '-1'.

功率歸零調整 (Watt Zero Adjustment)

Built-in external adjustment knob.

取樣時間 (Sampling Time)

Approx. 0.4 second.

電池 (Battery)

Heavy duty type or Alkaline battery. DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent.

操作溫度 (Operating Temp.)

0 ℃ to 50 ℃ (32 ℉ to 122 ℉).

操作溼度 (Operating Humidity)

Less than 80% RH.

電源供應 (Power Supply)

006P DC 9V battery (heavy duty type).

電源消耗 (Power Consumption)

Approx. DC 15 mA.

體積 (Dimensions)

HWD 230 x 74 x 38 mm. (9.1 x 2.9 x 1.5 inch)

重量 (Weight)

480 g/0.88 LB (including battery).

主體尺寸 (Conductor Size)

73.5 mm ( 2.9 inch ) - out side.

附件 (Accessories Included)

Red and Black Test Leads ..... 1 pair.

Instruction Manual ................. 1 PC.

選購附件及轉換器

Carry case : CA-05A

電器規格 (23±5 ℃)

Diode

Short/non conductance, good/defect test

Continuity Beeper

A continuity testing beeper is equipped, so when checking circuits of shorts or opens, then it is not necessary to look at the meter.

The Beeper sounds will be generated if continuity is present.
