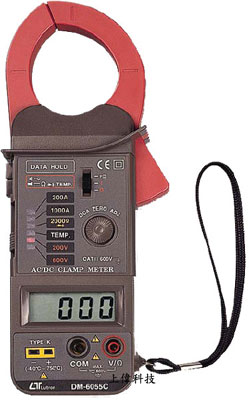

DM-6055C 多功能交直流鉤錶
簡介
-
交直流電壓：0.1V ~ 600V ±0.8%
-
交直流電流：0.1A ~ 1000A ±1.5%
-
電阻：0 ~ 2000歐姆 ±1%
-
溫度：-40ºC ~ 750ºC ±1%
-
讀值鎖定’峰值鎖定功能
-
鉤部口徑55mm
FEATURES
► Measure max. 1000 A DCA or ACA by the inductive conductor, contactless.
► Design meet IEC 1010 safety requirement.
► Multi-functions for ACA, DCA, ACV, DCV, ohms, Diode, Temperature.
► Built-in Data Hold function.
► Built-in Peak Hold function for measuring transient signal.
► LCD display, easy & clear readout.
► High internal impedance, assures min. measuring error.
► LSI-circuit provides high reliability and durability.
► Built-in low battery indicator.
► Overload protection circuit is provided for all range.
► Compact & heavy duty ABS housing plastic case.
一般規格
顯示 (Display)
- 13 mm (0.5") LCD, 3 1/2 digits. Max. indication 1999.
測量範圍 (Measurement Range)
- ACA, DCA, ACV, DCV, Ohms, Data hold, Peak Hold, Temperature.
極性 (Polarity)
- Automatic Switching, '-' indicates negative polarity.
電流感應器 (Current Sensor)
- Hall effect sensors.
歸零調整 (Zero Adjustment)
- DCA : External knob, for DCA zero
- Other : Automatic adjustment.
輸入過載指示 (Over-input indicator)
- Indication of '1' or '-1'.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
電池 (Battery)
- DC 9V battery, heavy duty or Alkaline type, 006P, MN1604 ( PP3) or equivalent.
電源消耗 (Power Consumption)
- Approx. DC 11 mA.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 400 g/0.90 LB (including battery).
體積 (Dimensions)
- HWD 230 x 70 x 36 mm (9.1 x 2.8 x 1.4 inch)
鉤部口徑 (Conductor Jaw Size)
- 78.5 mm ( 3.1 inch ) - outside
附件 (Accessories Included)
- Red and Black Test Leads ..... 1 pair.
- Operation manual..................... 1 PC.
- Carrying case ...........................1 PC.
- TP-01 Thermocouple probe with plug.........................................1 PC.
電器規格 (23±5 ℃)
| Function |
Range |
Resolution |
Accuracy |
Overload Protection |
Remark |
| DC Voltage |
200 V |
0.1 V |
± ( 0.8 % + 1 d ) |
AC/DC 600 V. |
Input impedance
10 Mega ohm
|
| 600 V |
1 V |
| AC Voltage
( 50/60Hz )
|
200 V |
0.1 V |
± ( 1 % + 2 d ) |
AC/DC 600 V. |
Input impedance
10 Mega ohm
|
| 600 V |
1 V |
| Resistance |
2000 ohm |
1 ohm |
± ( 1 % + 1 d ) |
AC/DC 400 V |
|
| AC/DC
Current
|
200 A |
0.1 A |
± ( 1.5 % + 15 d ) |
AC/DC 1000 A |
ACA Spec.
test on 60 Hz/50 Hz.
|
| 1000 A |
1 A |
± ( 2 % + 5 d ) |
| Temp. ℃ Model |
-40 ℃ to750 ℃ |
1 ℃ |
0 to 750 ℃ :± ( 1 % + 2 ℃ )
0 to -20 ℃ : typ.± 2 ℃
-20 to -40 ℃ : typ.± 3 ℃
|
|
|
| Diode Check |
Short/non conductance, good/defect test. Approx. diode VF ( forward voltage ).
|
| Peak Hold |
Acquisition Time : 150 ms, Accuracy : 3%, Display Decay Rate : < 2 digits/sec.
Application : Use for measuring transient signal for current .
|
| Data Hold |
Available for all functions to keep the data hold on the display .
|
|
Remark
|
- * Input impedance for ACV & DCV range is 10 Mega ohm.
- * ACA, ACV frequency response is from 40 to 400 Hz.
- * ACA, ACV specification be tested on sine wave 50/60 Hz.
|
type K 測溫棒 ( type K THERMOCOUPLE PROBE)
| TP-01 |
-40 ℃ to 250 ℃ ( 300 ℃ short- term ).
Ultra fast response naked-bead probe.
|
TP-03 |
-50 ℃ to 1200 ℃ ( -50 ℉ to 2200 ℉ ).
High temperature, Penetration & immersion.
|
| TP-02A |
-50 ℃ to 900 ℃ ( -50 ℉ to 1650 ℉ ). |
TP-04 |
-50 ℃ to 400 ℃ ( -50 ℉ to 752 ℉ ). |
| Remark : TP-01 is the standard accessory of the DM-6055C, DM-6055F. TP-02A, TP-03, TP-04 are optional |
|
