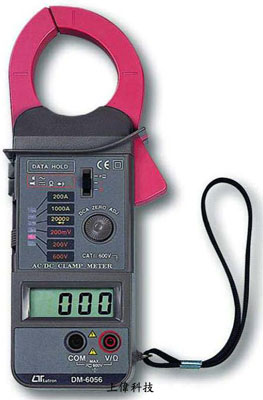

DM-6056 交直流鉤錶
簡介
-
交直流電壓：0.1mV ~ 600V ±0.8%
-
交直流電流：0.1A ~ 1000A ±2%
-
電阻：0 ~ 2000歐姆 ±1%
-
讀值鎖定功能’峰值鎖定功能
-
鉤部口徑55mm
-
Size：230 X 70 X 36mm
FEATURES
Design meet IEC 1010 safety requirement.
Compact & heavy duty ABS housing plastic case.
Measure DCA & ACA on the inductive conductor.
Wide ranges ( 1000 A, 200 A ) for ACA/DCA measurement.
LSI circuit provides high reliability and durability.
Multi-functions for ACA, ACV, DCV, OHMS, Diode, Continuity beeper measurement.
LCD display allows clear readout even at high ambient light level.
Overload protection circuit is provided for all range.
一般規格
顯示 (Display)
- 13 mm (0.5") LCD, 3 1/2 digits. Max. indication 1999.
測量範圍 (Measurement Range)
- ACA, ACV, DCA, DCV, Resistance, Diode, Continuity, Data hold, Peak hold.
極性 (Polarity)
- Automatic Switching, '-' indicates negative polarity.
電流感應器 (Current Sensor)
- Hall effect sensors.
歸零調整 (Zero Adjustment)
- DCA : Manual adjustment.
- Other ranges except the DCA range : Automatic adjustment.
輸入過載指示 (Over-input indicator)
- Indication of '1' or '-1'.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
電池 (Battery)
- DC 9V battery, heavy duty or Alkaline type, 006P, MN1604 ( PP3) or equivalent.
電源消耗 (Power Consumption)
- Approx. DC 9.6 mA.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 380 g/0.85 LB (including battery).
體積 (Dimensions)
- HWD 230 x 70 x 36 mm (9.1 x 2.8 x 1.4 inch)
鉤部口徑 (Max. Conductor Size)
- 32 mm (1.3 inch) Dia.
附件 (Accessories Included)
- Red and Black Test Leads ..... 1 pair.
- Operation manual..................... 1 PC.
- Carrying case , CA-05A ....................1 PC
選購轉換器 (Optional Adapters)
- Temperature Adapter, Light Adapter, Anemometer Adapter, EMF Adapter, Tachometer Adapter, RH Adapter, 50 Amp Shunt, High Voltage Probe..
電器規格 (23±5 ℃)
| Function |
Range |
Resolution |
Accuracy |
Overload Protection |
| DC Voltage |
200 mV |
0.1 mV |
± ( 0.8 % + 1 d ) |
AC/DC 400 V. |
| 200 V |
0.1 V |
AC/DC 600 V. |
| 600 V |
1 V |
| AC Voltage
( 50/60Hz )
|
200 mV |
0.1 mV |
± ( 1 % + 2 d ) |
AC/DC 600 V. |
| 200 V |
0.1 V |
| 600 V |
1 V |
| DC Current |
200 A |
0.1 A |
± ( 1.5 % + 10 d ) |
AC/DC 1000 A |
| 1000 A |
1 A |
± ( 2 % + 2 d ) |
| AC Current |
200 A |
0.1 A |
± ( 1.5 % + 10 d ) |
AC/DC 1000 A |
| 1000 A |
1 A |
± ( 2 % + 2 d ) |
| Resistance |
2000 ohm |
1 ohm |
± ( 1 % + 1 d ) |
AC/DC 400 V |
| Diode Check |
Short/non conductance, good/defect test. Approx. diode VF ( forward voltage ).
|
| Peak Hold |
Acquisition Time : 150 ms, Accuracy : 3%, Display Decay Rate : < 2 digits/sec.
Application : Use for measuring transient signal for current .
|
| Data Hold |
Available for all functions to keep the data hold on the display .
|
|
