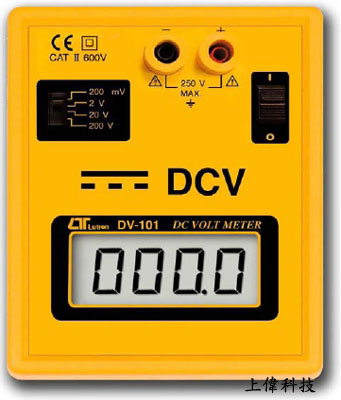

DV-101 直流電壓表

特色

• 數位式檯面用直流電壓表

• 測量範圍：0 ~ 200mV（解析度 0.1mV）

                              0 ~ 2V（解析度 0.001V）

                              0 ~ 20V（解析度 0.01V）

                              0 ~ 200V（解析度 0.1V）

• 精確度：± 0.8%

• 超大型液晶顯示器，容易讀取

• Size：147 X 117 X 47mm

FEATURES

► Digital bench DCV meter, easy operation, professional quality, compact size.

► Large LCD display.

► 4 ranges :
200 mV x 0.1 mV
2 V x 0.001 V
20 V x 0.01 V
200 V x 0.1 V

► High input impedance.

► Overload protection for each range.

► Over - input indication.

► Meet IEC1010 CATII 600V.

► 006P DC 9V power.

► Safety standard banana input terminals.

► Application : Education, Maintenance, Production line, School, Laboratory, Industrial and Quality control.

規格

顯示 (Display)

LCD, 18 mm ( 0.7" ) digit height.

測量 (Measurement)

DC voltage.

範圍/解析度 (Range/ Resolution)

200 mV x 0.1 mV
2 V x 0.001 V
20 V x 0.01 V
200 V x 0.1 V

精確度 (Accuracy)

± ( 0.5%+1d ) , reading @ 200 mV range
± ( 0.8%+1d ) , reading @ 2V/20 V/200 V range

輸入阻抗 (Input Impedance)

10M ohm

極性 (Polarity)

Automatic Switching '_' indicates negative polarity.

歸零調整 (Zero Adjustment)

Automatic.

過載輸入 (Over - input)

display shows '1' or '-1'

安全性 (Safety)

Meet IEC1010 CATII 600V.

取樣時間 (Sampling Time)

Approx. 0.4 second.

操作溫度 (Operating Temp.)

0 ℃ to 50 ℃ (32 ℉ to 122 ℉).

操作溼度 (Operating Humidity)

Less than 80% RH.

電源供應 (Power Supply)

006P DC 9V battery.

電源消耗 (Power Consumption)

Approx. DC 1.9 mA.

體積 (Dimensions)

HWD 147 x 117 x 52 mm,(5.8 x 2.6 x 4.0 inch).

重量 (Weight)

309 g/0.68 LB (including battery).

輸入端子 (Input terminal)

Standard banana terminals ( Red & Black each ).

附件 (Accessories Included)

Operation Manual.................................... ..1. .P..C.

選購附件 (Optional Accessories)

Test alligator clips, one pair, TL-05
Test leads with pin probe, one pair, TL-25
