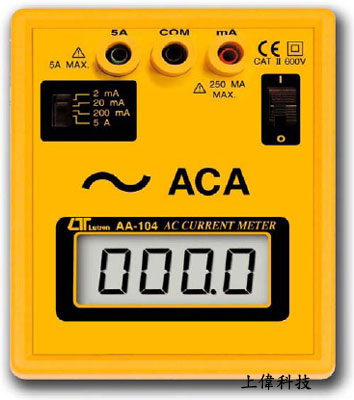

AA-104 交流電流表
特色
-
數位式檯面用交流電流表
-
測量範圍：0 ~ 2mA（解析度 0.001mA）
0 ~ 20mA（解析度 0.01A）
0 ~ 200mA（解析度 0.1mA）
0 ~ 5A（解析度 0.01A）
-
精確度：± 1.5%
-
超大型液晶顯示器，容易讀取
-
Size：147 X 117 X 47mm
FEATURES
► Digital bench ACA meter, easy operation, professional quality, compact size.
► 4 ranges :
2 mA x 0.001 mA
20 mA x 0.01 mA
200 mA x 0.1 mA
5 A x 0.01 A
► Large LCD display.
► All ranges build in fuse for over load protection
► Meet IEC1010 CATII 600V.
► Frequency Response : 40 Hz-500 Hz, sine wave.
► Power Supply : 006P DC 9V battery.
► Application : Education, Maintenance, Production line, School, Laboratory, Industrial and Quality control.
規格
顯示 (Display)
- LCD, 18 mm ( 0.7" ) digit height.
測量 (Measurement)
- AC current.
範圍/解析度 (Range/ Resolution)
- 2 mA x 0.001 mA
20 mA x 0.01 mA
200 mA x 0.1 mA
5 A x 0.01 A
精確度 (Accuracy)
- 2 mA/20 mA/200 mA range : ± ( 1.2% + 2d ) reading
- 5 A range : ± ( 1.5% + 3d ) reading
全刻度壓降 (Voltage Drop of the full scale)
- 2 mA/20 mA/200 mA range : 200 mV.
the full scale 5 A range : 50 mV.
過載保護 (Over load Protection)
- 2 mA/20 mA/200 mA range : 500 mA Fuse.
- 5 A range : 5 A Fuse.
頻率反應 (Frequency Response)
- 40 Hz-500 Hz, sine wave.
AC/DC 轉換器 (AC/DC converter)
- Average reading calibrated to RMS, sine wave.
歸零調整 (Zero Adjustment)
- Automatic.
過載輸入 (Over - input)
- display shows '1'
安全性 (Safety)
- Meet IEC1010 CATII 600V.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery.
電源消耗 (Power Consumption)
- Approx. DC 1.9 mA.
體積 (Dimensions)
- HWD 147 x 117 x 52 mm,(5.8 x 2.6 x 4.0 inch).
重量 (Weight)
- 324 g/0.71 LB (including battery).
輸入端子 (Input terminal)
- Standard terminals, 3 PCs, ( Red, Black, Green each )
附件 (Accessories Included)
- Operation Manual.................................... ..1. .P..C.
選購附件 (Optional Accessories)
- Test alligator clips, one pair, TL-05
Test leads with pin probe, one pair, TL-25
|
