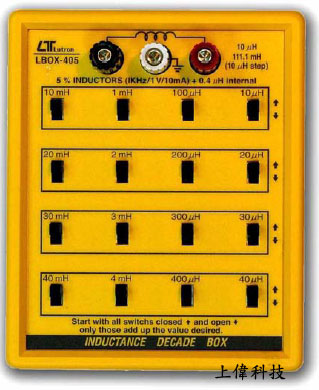

LBOX-405 電感箱

特色

• 提供確實可信賴的電感值

• 採小型化 ，易於攜帶

• 10uH ~ 111.1mH，提供寬範圍的電感值

• 採滑動開關設計，可用開關增減電感值

• 精確度：± 5%

• Size：147 X 117 X 47mm

FEATURES

► Applications : General applications , Troubleshooting, maintenance , Education and Vocational training , Production line testing , Radio and TV services  , Working standards , Research design & develop , Physics laboratory work

► Pocket size, offering accurate, reliable performance.

► 10 uH to 111.1 mH, wide range and high resolution ( 10 uH per step ), practical and versatile tools.

► With four decades of inductance.

► Slide switches that allow the user to simply add or subtract for desired value.

► Terminals with multi way binding posts, one to switch shield case.

► ABS plastic housing case, rugged components.

規格

範圍 (Range)

10 uH to 111.1 mH ( 10 uH per step )

精確度 (Accuracy)

5% inductors used throughout.
@ 23 ± 5℃
@ 1 KHz test frequency

最大電流比 (Max. Rating Current)

10 mA DC or AC.

內部殘留電感 (Internal Residual Inductance)

Approx. 0.5 uH.

電源供應 (Power Supply)

None

操作溫度 (Operating Temp.)

0 ℃ to 50 ℃ (32 ℉ to 122 ℉).

操作溼度 (Operating Humidity)

Less than 80% RH.

體積 (Dimensions)

HWD 14.7 cm x 11.7 cm x 5.5 cm. ( 5.79 x 4.61 x 2.16 inch ).

重量 (Weight)

333 g/0.74 lb.

附件 (Accessories Included)

Operation Manual......................................... .1 PC.

選購附件 (Optional Accessories)

Test alligator clips, one pair, TL-05
