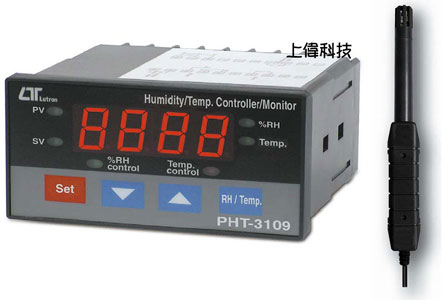

PHT-3109 溫濕度設定顯示錶
簡介
FEATURES
Professional Humidity measurement monitor and controller.
Build in humidity control relay and the Temp. control relay.
Relay will be make action ( On/Off ) when the reading value reach high limit or low limit value.
Offset value setting.
Hysteresis value setting for high and low alarm.
℃,℉ temp. unit setting with default.
High precision humidity sensor with fast response time and high accuracy.
Large red LED display, high brightness and easy to read.
RS232 computer interface, send out the humidity and the temperature data at the same time.
Optional data acquisition software.
Optional GSM controller.
Microprocessor circuit ensures high accuracy and provides special functions and features.
Standard 96 X 48 mm DIN case.
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
單位 (Unit)
- Temp. : ℃, ℉
- Humidity : %RH
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
感應器結構 (Sensor Structure)
- Humidity : Semiconductor
- Temperature : Semiconductor
取樣時間 (Sampling Time)
- Approx. 1 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function : Relay 1 : Humidity control relay. ; Relay 2 : Temperature control relay
- Max load : 1 ACA/250 ACV ; 1 DCA/24 DCV
設定值 (Setting Value)
- 1. High limit value setting.
- 2. Low limit value setting.
- 3. Hysteresis value setting.
- 4. Offset value setting.
- * 1, 2, 3 Setting for Humidity and Temp.
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 4.7 VA/AC 110V.
- Approx. 5.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual........................1 PC
- Humidity/Temp. probe..................1 PC
- Case holder with screw................. 2 PCs
- Probe fix holder............................1 PC
選購附件 (Optional Accessories)
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- GSM controller, GSM-889.I
- Interface cable ( cable between meter to GSM-889 ), GMCB-89.
電器規格 (23±5 ℃)
濕度 (Humidity)
- Range : 10 % to 95 % R.H.
- Resolution : 0.1 % R.H.
- Accuracy
- ≧70% RH : ± (3% reading + 1% RH).
- < 70% RH : - 3% RH.
溫度 (Temperature)
- Measuring Range : 0 ℃ to 50 ℃/32 ℉ to 122 ℉
- Resolution : 0.1 ℃/0.1 ℉
- Accuracy : ± 0.8 ℃/1.5 ℉
|
