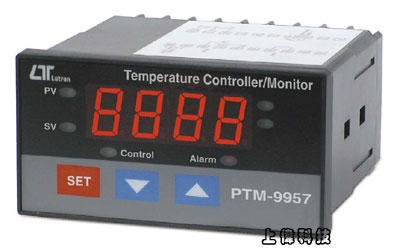

PTM-9957 溫度控制顯示錶
簡介
- Type K range : -100 to 1300 ℃, ℃/℉.
- Type J range : -100 to 1200 ℃, ℃/℉.
- Type T range : -100 to 400 ℃, ℃/℉.
- Type E range : -100 to 900 ℃, ℃/℉.
- Type R range : 0 to 1700 ℃, ℃/℉.
- Type S range : 0 to 1500 ℃, ℃/℉.
FEATURES
Thermocouple Temp. sensor : type K/J/T/E/R/S.
Pt Temp. sensor : Pt 100 ohm.
- Type K range : -100 to 1300 ℃, ℃/℉.
- Type J range : -100 to 1200 ℃, ℃/℉.
- Type T range : -100 to 400 ℃, ℃/℉.
- Type E range : -100 to 900 ℃, ℃/℉.
- Type R range : 0 to 1700 ℃, ℃/℉.
- Type S range : 0 to 1500 ℃, ℃/℉.
Pt 100 ohm range : -199 to 850 ℃, ℃/℉.
Resolution : 0.1 degree ( < 1000 degree ) ; 1 degree ( ≧1000 degree )
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Control Relay will make action when the reading value reach to control value.
Alarm Relay will make action when the reading value reach to high/low alarm value.
Hysteresis value setting for control and alarm function.
PoMicroprocessor circuit ensures high accuracy and provides special functions and features.
Power : 90 ACV to 264 ACV, 50/60 Hz.
RS-232/USB computer interface.
DIN size : 96 x 48 mm. Depth : 107 mm.
Optional type K probe : TP-01, TP-02A, TP-03, TP-04, TP-05.
Optional Pt 100 ohm probe : TP-100B.
Optional USB cable, USB-01.
Optional date acquisition software,SW-U801-WIN.
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
溫度感應器型式 (Temp.Sensor type )
- Thermocouple Temp. sensor : Type K/J/T/E/R/S.
- Pt Temp. sensor : Pt 100 ohm.
- * Sensor type can make the internal setting with default
顯示單位 (Display units)
- ℃,℉.
補償調整 (Offset adjust)
- It can make the internal Offset setting with default.
增益調整 (Gain adjust)
- It can make the internal Gain setting with default
取樣時間 (Sampling Time)
- Approx. 1 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function : Relay 1 : control relay. ; Relay 2 : High/Low alarm relay.
- Max load : 1 ACA/250 ACV ; 1 DCA/24 DCV *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.
設定功能 (Setting Function)
1st layer setting procedures
- CtLo ( Control low limit )
- CtHi ( Control high limit )
- ALLo ( Alarm low limit )
- ALHi ( Alarm high limit ).
Second layer setting procedures
- tyPE ( Sensor type )
- dEG ( ℃, ℉ )
- FiLt ( Digital filter )
- CtHy ( Control hysteresis set )
- ALHy ( Alarm hysteresis set )
- oFSt ( Offset adjustment )
- GAin ( Gain adjustment )
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 3.3 VA/AC 110V.
- Approx. 5.5 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual........................1 PC
- Case holder with screw................. 2 PCs
選購附件 (Optional Accessories)
- Type K Temp. probe : TP-01, TP-02A, TP-03, TP-04, TP-05
- Pt 100 ohm Temp. probe : TP-100B.
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Real time SD card datalogger DL-9602SD
- GSM controller, GSM-889.I
- Interface cable ( cable between meter to GSM-889 ), GMCB-89.
電器規格
PT 100 ohm
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-199.9 to 850.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-327.0 to 999.9 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| 1 ℉ |
1000 to 1562 ℉ |
± ( 0.4 % + 2 ℉ ) |
Type K/J/T/E/R/S
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1300 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2372 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type J |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1150 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2102 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type T |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 400.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 752.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| Type E |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 900.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 1652 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type R |
1 ℃ |
0 to 600 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 601 to 1700 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.5 % + 2 ℉ ) |
| 1113 to 3092 ℉ |
± ( 0.5 % + 2 ℉ ) |
| Type S |
1 ℃ |
0 to 600 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 601 to 1500 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.5 % + 2 ℉ ) |
| 1113 to 2732 ℉ |
± ( 0.5 % + 2 ℉ ) |
Remark :
- a. Accuracy value is specified for the meter only
- b. Accuracy is tested under the meter's environment temperature within 23 ± 5℃.
- c. Linearity Correction : Memorize the thermocouple's curve into the intelligent CPU circuit,
|
