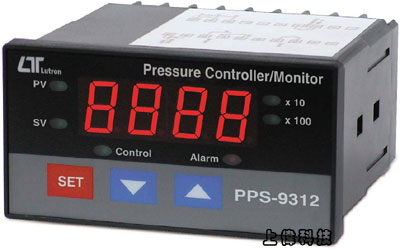

PPS-9312 壓力控制顯示錶
簡介
- 主機適用 2, 5, 10, 20, 50, 100, 400 bar 等壓力傳送器 . (TR-PS2W **BAR 為選購品)
8種單位選擇切換 : Bar, PSI, Kg/cm^2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere.
上限或下限範圍設定及警報設定功能
上限或下限設定及警報設定繼電器輸出
內建直流電壓 12V 輸出
工作電源：AC90 ~ 264V (50/60HZ)
RS-232 / USB 連接介面(軟體選購)
Size: 96x48x107mm
FEATURES
Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are necessary typically when change a new sensor .
Unit select : Bar, PSI, Kg/cm^2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere, hPa, KPa.
Large red LED display, high brightness and easy to read.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Alarm Relay will make action when the reading value reach to high/low alarm value.
Control Relay will make action when the reading value reach to control value.
Hysteresis value setting for control and alarm function.
Microprocessor circuit ensures high accuracy and provides special functions and features.
Power : 90 ACV to 264 ACV, 50/60 Hz.
Cooperate the 4-20 mA pressure input, sensor can install in the faraway position.
DC 12V output, used for the power of pressure sensor.
RS-232/USB computer interface.
DIN size : 96 x 48 mm. Depth : 107 mm.
Optional pressure sensor, TR-PS2W-xxBAR, PS93MA-xxBAR.
Optional USB cable, USB-01.
Optional data acquisition software.
Optional GSM controller.
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
感應器型式 (Sensor Structure)
- Can cooperate with optional 2, 5, 10, 20, 50, 100, 200, 400 bar two wires 4 to 20 mA pressure sensor, new calibration are not necessary typically when change the new sensor
- * Sensor type can make the internal setting with default
顯示單位 (Display units)
- Bar, Psi, Kg/cm^2, mm Hg, inch Hg, meter H2O, inch H2O, Atmosphere, hPa, KPa.
- * Unit can make the internal setting with default
精確度 (Accuracy)
- ± ( 0.5% + 2 d )
- * Meter only.
- Within 23 ℃± 5 ℃
壓力感應器 (Pressure sensor) * optiona
- Cooperate the optional two wires ( or four wires ) 4 to 20 mA pressure sensors ( transmitters ).
- * two wires sensor : TR-PS2W-xxBAR
- * Four wires sensor : PS93MA-xxBAR
補償調整 (Offset adjust)
- It can make the internal Offset setting with default.
增益調整 (Gain adjust)
- It can make the internal Gain setting with default
從感應器輸入訊號 (Input signal from sensor)
- * Input 4 mA = 0 pressure
- * Input 20 mA = full scale pressure
取樣時間 (Sampling Time)
- Approx. 1 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function : Relay 1 : control relay. ; Relay 2 : High/Low alarm relay.
- Max load : 0.5 ACA/250 ACV ; 0.5 DCA/24 DCV *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.
設定功能 (Setting Function)
1st layer setting procedures
- CtLo ( Control low limit )
- CtHi ( Control high limit )
- ALLo ( Alarm low limit )
- ALHi ( Alarm high limit ).
Second layer setting procedures
- tyPE ( Sensor type )
- FiLt ( Digital filter )
- CtHy ( Control hysteresis set )
- ALHy ( Alarm hysteresis set )
- oFSt ( Offset adjustment )
- GAin ( Gain adjustment )
- Unit ( Unit set )
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 5.3 VA/AC 110V.
- Approx. 7.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual........................1 PC
- Case holder with screw................. 2 PCs
選購附件 (Optional Accessories)
- Two wires pressure transmitters, Model : TR-PS2W-xx BAR * Range : 2, 5, 10, 20, 50, 100, 400 BAR.
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Real time SD card datalogger DL-9602SD
- GSM controller, GSM-889.I
- Interface cable ( cable between meter to GSM-889 ), GMCB-89.
|
