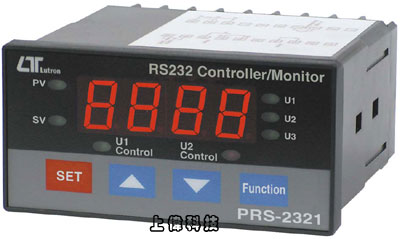

PRS-2321 RS-232控制顯示錶
簡介
- 搭配路昌電子所生產具有 RS-232 輸出介面之儀錶 . 接受 RS-232 訊號作顯示及控制 .
- 可接受雙視窗顯示儀表 , 最多可達 3 視窗儀錶 (單一儀錶) .
可同時收受兩組 RS-232 訊號做控制 (同一儀錶).
上限或下限範圍設定 (繼電器開/關)
內建兩組控制繼電器
工作電源：AC90 ~ 264V (50/60HZ)
RS-232 / USB 連接介面(軟體選購)
Size: 96x48x107mm
FEATURES
RS232 input, can cooperate full line LUTRON instruments ( build RS232 output ) be used as a professional controller/monitor.
It can control max. two reading value ( Unit 1, Unit 2 value ) if the LUTRON RS232 meter build two displays.
It can show max. three reading value ( Unit 1, Unit 2, Unit 3 value ) if the LUTRON RS232 meter build in three displays.
Professional monitor and controller.
Build in Unit 1 control relay and the Unit 2 control relay.
Relay will be make action ( On/Off ) when the reading value reach high limit or low limit value.
Offset value setting.
Hysteresis value setting for high and low alarm.
Large red LED display, high brightness and easy to read.
Microprocessor circuit ensures high accuracy and provides special functions and features.
Standard 96 X 48 mm DIN case.
一般規格
應用 (Application)
- RS232 data input, it can cooperate full line LUTRON instruments ( build RS232 output ) be used as a professional controller/monitor.
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
單位 (units)
- Unit 1 : Controller and monitor.
- Unit 2 : Controller and monitor.
- Unit 3 : Monitor only.
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
取樣時間 (Sampling Time)
- Approx. 1 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function : Relay 1 : Unit 1 control relay. ; Relay 2 : Unit 2 control relay.
- Max load : 0.5 ACA/250 ACV ; 0.5 DCA/24 DCV *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.
設定值 (Setting value)
- High limit value setting. Low limit value setting. Hysteresis value setting. Offset value setting.
- * Setting for Unit 1 and Unit 2 value.
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸入 (Data Input)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 4.7 VA/AC 110V.
- Approx. 5.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual........................1 PC
- IDouble earphone cable, UPCB-03 ........................1 PC
- Case holder with screw................. 2 PCs
|
