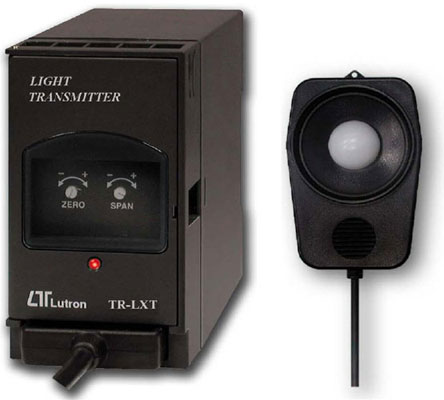

TR-LXT1A4 照度傳送器
特色
-
測量範圍:2000 , 20000 , 50000LUX
-
三種測量範圍供選擇
-
輸出 : 直流 4 ~ 20mA
-
附照度感應器一只
-
工作電壓 : AC90V ~ 264V(50/60HZ)
-
外部調整及斜率調整
規格
測量範圍 (Measure Range)
-
Range 1 : 0-2,000 Lux
Range 2: 2,000-20,000 Lux
Range 3 : 20,000-50,000 Lux
輸出 (Output) 4 - 20 mA
-
Range 1 :
0 Lux = 4 mA
1,000 Lux = 12mA
2,000 Lux = 20 mA
Range 2:
0 Lux = 4 mA
2,000 Lux = 5.6mA
20,000 Lux = 20mA
Range 3 :
0 Lux = 4 mA
20,000 Lux = 10.4 mA
50,000 Lux = 20 mA
外部調整 (External Adjustment)
-
ZERO VR
-
SPAN VR
電源供應 (Power Supply)
-
90 - 260 ACV/ 50 Hz/60 Hz
操作溫度 (Operation Temperature)
-
0 - 50 ℃ ( 32 - 122 ℉)
操作溼度 (Operation Humidity)
-
Less than 80 %RH
附件 (Accessory Included)
-
Light probe
放置 (Mounting)
-
Din rail or Wall
箱體 (Case)
-
ABS plastic
其他 (Others)
-
Separate probe with plug
|
