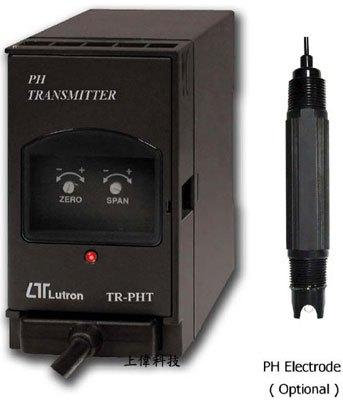

TR-PHT1A4 酸鹼度傳送器
特色
規格
測量範圍 (Measure Range)
-
0 - 14 pH
輸出 (Output) 4 - 20 mA
-
0 pH = 4 mA
7 pH = 12 mA
14 pH = 20 mA
外部調整 (External Adjustment)
-
ZERO VR
-
SPAN VR
電源供應 (Power Supply)
-
90 - 260 ACV/ 50 Hz/60 Hz
操作溫度 (Operation Temperature)
-
0 - 50 ℃ ( 32 - 122 ℉)
操作溼度 (Operation Humidity)
-
Less than 80 %RH
附件 (Accessory Included)
-
Electrode is optional.
選購品 (Optional)
-
pH Electrode :PE-21 , PE-03 , PE-11 , PE-01
放置 (Mounting)
-
Din rail or Wall
箱體 (Case)
-
ABS plastic
其他 (Others)
-
* High input impedance
* BNC input socket
|
