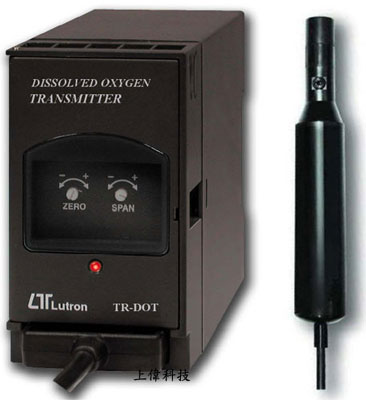

TR-DOT1A4 溶氧傳送器
特 色
-
測量範圍 : 0 ~ 20mg/L
-
輸出 : 直流 4 ~ 20mA
-
附溶氧電極一只
-
工作電壓 : AC90V ~ 264V(50/60HZ)
-
外部調整及斜率調整
規格
測量範圍 (Measure Range)
-
Range 1 : O² CAL.
-
Range 2 : DO : 0 -20 mg/L
輸出 (Output) 4 - 20 mA
-
Range 1 ( CAL ) : 20.9 % O² = 12 mA
Range 2 ( DO ) : 0 mg/L = 4 mA , 10 mg/L = 12 mA , 20 mg/L = 20 mA
外部調整 (External Adjustment)
-
ZERO VR
-
SPAN VR
電源供應 (Power Supply)
-
90 - 260 ACV/ 50 Hz/60 Hz
操作溫度 (Operation Temperature)
-
0 - 50 ℃ ( 32 - 122 ℉)
操作溼度 (Operation Humidity)
-
Less than 80 %RH
附件 (Accessory Included)
-
Dissolved Oxygen Probe
選購品 (Optional)
-
Probe-filling electrolyte, OXEL-03
Spare diaphragms, OXDP-02
放置 (Mounting)
-
Din rail or Wall
箱體 (Case)
-
ABS plastic
其他 (Others)
-
Separate probe with plug
|
