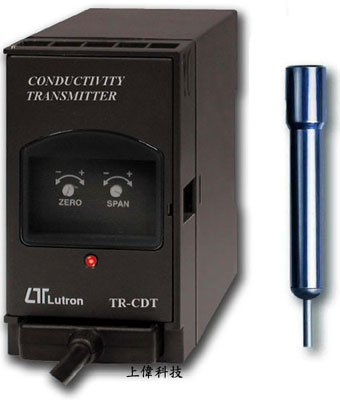

TR-CDT1A4 電導傳送器
特色
-
測量範圍:0 ~ 200uS , 0.2 ~ 2mS , 2 ~ 20mS
-
三種測量範圍供選擇
-
輸出 : 直流 4 ~ 20mA
-
附電導電極一只
-
工作電壓 : AC90V ~ 264V(50/60HZ)
-
外部調整及斜率調整
規格
測量範圍 (Measure Range)
-
Range 1 : 0 - 200 uS
Range 2: 0.2 - 2 mS
Range 3 : 2 - 20 mS
輸出 (Output) 4 - 20 mA
-
Range 1 : 0 uS = 4 mA , 20 uS = 5.6mA , 200uS = 20mA
Range 2 : 0 mS = 4 mA , 0.2 mS = 5.6mA , 2 mS = 20 mA
Range 3 : 0 mS = 4 mA , 2 mS = 5.6mA , 20 mS = 20 mA
外部調整 (External Adjustment)
-
ZERO VR
-
SPAN VR
電源供應 (Power Supply)
-
90 - 260 ACV/ 50 Hz/60 Hz
操作溫度 (Operation Temperature)
-
0 - 50 ℃ ( 32 - 122 ℉)
操作溼度 (Operation Humidity)
-
Less than 80 %RH
附件 (Accessory Included)
-
Conductivity Prob
選購品 (Optional)
-
1.413 mS standard solution
放置 (Mounting)
-
Din rail or Wall
箱體 (Case)
-
ABS plastic
其他 (Others)
-
Separate probe with plug
|
