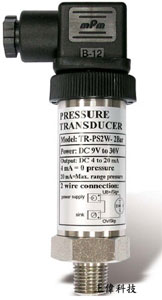

| 測量範圍/型號
Measuring range/ Model
|
Measuring Range
2 BAR ( 29 PSI )
5 BAR ( 72.5 PSI )
10 BAR ( 145 PSI )
20 BAR ( 290 PSI )
50 BAR ( 725 PSI )
100 BAR ( 1450 PSI )
400 BAR ( 5800 PSI )
|
Model
TR-PS2W-2BAR
TR-PS2W-5BAR
TR-PS2W-10BAR
TR-PS2W-20BAR
TR-PS2W-50BAR
TR-PS2W-100BAR
TR-PS2W-400BAR
|
| 輸出 (Output) |
4 - 20 mA , 4 mA = 0 BAR , 20 mA = Full scale pressure |
| 電源供應 (Supply voltage) |
DC 9V to 30 V * Protectred against reverse polarity |
| 芯線 (Wire numbers) |
2 wires, bioth for signal and power supply. |
| 埠連接器 (Port connector) |
1/4" NPT or PS 1/4", 19 teeth per inch.
* Inclided one adapter connector that convert the 1/4" NPT to 1/4 " PS. |
| 取值及歸零調整
Span and Zero adjustment
|
Span and Zero can be adjustment by multi turns VR. |
| 取值 (Span) |
± 1 % F.S. * Within 10℃ to 40℃ . |
| 歸零 (Zero) |
± 2 % F.S. * Within 10℃ to 40℃ . |
| 負載阻抗需求
Load impedance requirement
|
Load up to 500 ohms. |
| 操作溫度
Operating Temperature
|
-20℃ to 80℃ ( -4℉ to 176℉ ). |
| Operating Humidity |
Less than 80% RH. |
| 尺寸 (Size) |
30 mm dia. x 85 mm ( 1.2 inch dia. x 3.3 inch ) |
| 重量 (Weight) |
160 g. |
| 輸出連接器 (Output connector) |
Socket |
| 電線連接 (Wire Connection) |
2 wires :
Connection 1 : Power + and signal
Connection 2 : Power - |
