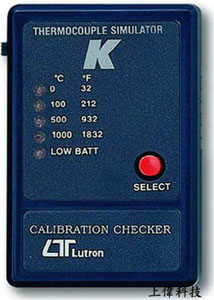

CC-TEMPK 溫度校正器

特色

• 溫度校正點 : 0°C (32°F) . 100°C (212°F) . 500°C (932°F) . 1000°C (1832°F).

• 攝氏(°C)/華氏(°F)單位切換

• 範圍選擇採按鍵式開關設計

• 工作電壓過低警告顯示

FEATURES

► Compact Lightweight casing.

► These Simulators are easy to use and provide a quick way for checking the Performance of any type K thermocouple instruments, fitted with a miniature thermocouple socket.

► Ideal as a precision "source" for re-calibrating process indicators and controllers. The Simulators can be used to set up process devices to display in approximate engineering units.It enables the user to easily perform field calibrations of meters or controllers.

► Compact case features push button range selector switch for one hand operation. Bright red LEDs indicate simulation range or when battery power falls below a specific level.

► Easy operation. Simply plug the calibration lead to your device, switch the unit on, select the desired range and read the displayed value on your device. If the displayed value is the same as the simulated, then your device is in calibration.

規格

熱電偶 (Thermocouple)

Type K.

範圍及精確度 (Range & Accuracy)

操作溫度

0 to 50℃ .

電池型態 (Battery Type)

9V MN1604(PP3) or equivalent.

電池壽命 (Battery Life)

Approx. 15 hours Alkaline Batteries.

低電檢查 (Low Battery Check)

LED "LOW BATT" indicator.

附件 (Standard Accessories)

Operational manual............................1 PC.

選購附件 (Otional Accessory)

Calibration lead with two type K connectors, DUK-02
