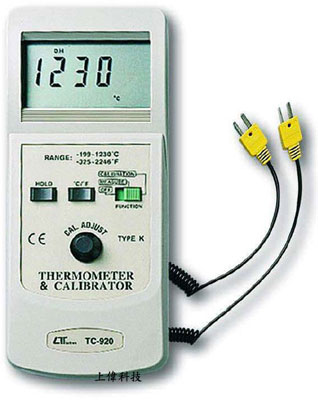

TC-920 溫度校正器
特色
-
二合一功能,可校正及測量溫度功能
-
校正範圍 : -199 ~ 1230°C(Type K)
-
測量範圍 : 199 ~ 1230°C(Type K)
-
精確度 : ±1%
-
攝氏(°C)/華氏(°F)單位切換
-
RS-232 / USB 連接介面(軟體選購)
-
Size：185 X 78 X 38mm
FEATURES
2 in 1, one meter included " type k thermometer " & " type k thermocouple calibrator ".
Precision calibrator for type k thermometer, calibrating process devices and measuring process signals.
Wide range : -199℃ to 1230℃ ( -325℉ to 2246℉ ).
Microprocessor circuit assures high accuracy and provides special functions and features.
Build in temperature linearity compensation circuit, high precision.
℃ & ℉ select & data hold function for the temperature measurement.
℃ & ℉ select by the front button for the temperature calibrator.
Thermocouple sensor for Temp. measurement, fast response time.
RS 232 PC serial computer interface.
Temp. measuring input to meet any standard type K ( NiCr-NiAl ) probe.
Fitted with standard type K input measuring socket.
Super large LCD display, easy reading.
Operates from 006P DC 9V battery.
Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI with thermocouple linearity correction circuit.
顯示 (Display)
- 14.8 mm (0.58") digit size. Super large LCD display with annunciator.
功能 (Function)
- 2 in 1 : Type k thermometer, Type k thermocouple calibrator.
範圍 (Range)
- Measure : -199.9℃ to 1230℃/ - 327℉ to 2246℉.
- Calibrator : -199.9℃ to 1230℃/ - 327℉ to 2246℉.
極性 (Polarity)
- ' - ' indicates negative polarity.
溫度表 (Thermometer)
- Sensor Type : Thermocouple K ( NiCr-NiAl ).
- Input Impedance : 10 Mega ohm.
取樣 (Sampling)
- Approx. 1 second.
資料輸出 (Data Output)
- RS 232 PC serial computer interface.
過載輸入指示 (Over input indication)
- Indication of "¯¯¯¯"
操作溫度 (Operating Temp.)
- 0 to 50℃ (32 to 122℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 9V battery, 006P, MN1604(PP3) or equivalent. Heavy duty or Alkaline type.
電源損耗 (Power Consumption)
- Approx. DC 9 mA.
重量 (Weight)
- 280 g/0.62 LB ( included battery ).
大小 (Size)
- 185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ).
附件 (Accessories Included)
- Instruction Manual ............................ 1 PC.
- Dual type k plug cable, DUK-02.......1 PC.
選購附件 (Optional Accessories)
- * Temperature probe, TP-01, TP-02A, TP-03, TP-04.
- * Carrying case, CA-03, CA-04.
- * Software, SW-U801-WIN.
- * RS232 cable, UPCB-01.
- * USB cable, USB-01.
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
K型熱電偶校正器 (Type K thermocouple Calibrator)
| Calibrator Range |
Resolution |
Accuracy |
| ℃ |
-199.9 ℃ to -100.1 ℃ |
0.1 ℃ |
± (1 % + 1 ℃) |
| -100.0 ℃ to 999.9 ℃ |
0.1 ℃ |
± (0.5 % + 1 ℃) |
| 1000 ℃ to 1230 ℃ |
1 ℃ |
| ℉ |
-327 ℉ to -200 ℉ |
1 ℉ |
± (1 % + 2 ℉) |
| -199.9 ℉ to -148.1 ℉ |
0.1 ℉ |
| -148.0 ℉ to 999.9 ℉ |
0.1 ℉ |
± (0.5 % + 2 ℉) |
| 1000 ℉ to 2246 ℉ |
1 ℉ |
熱電偶及測量 (Thermometer, measure)
| Calibrator Range |
Resolution |
Accuracy |
| ℃ |
-199.9 ℃ to -100.1 ℃ |
0.1 ℃ |
± (1 % + 1 ℃) |
| -100.0 ℃ to 999.9 ℃ |
0.1 ℃ |
± (0.5 % + 1 ℃) |
| 1000 ℃ to 1230 ℃ |
1 ℃ |
| ℉ |
-327 ℉ to -200 ℉ |
1 ℉ |
± (1 % + 2 ℉) |
| -199.9 ℉ to -148.1 ℉ |
0.1 ℉ |
| -148.0 ℉ to 999.9 ℉ |
0.1 ℉ |
± (0.5 % + 2 ℉) |
| 1000 ℉ to 2246 ℉ |
1 ℉ |
The accuracy specification of thermometer applies only to the instrument itself and allowance must be made for limits of error permitted in thermocouple.
|
