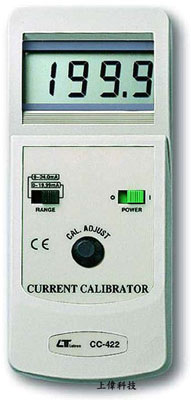

CC-422 4~20mA電流校正器

特色

• 輸出直流電流 : 0 ~ 19.99mA或 0 ~ 24.0mA

• 負載500歐姆,迴路電壓DC12V

• 精確度 : 0 ~ 19.99mA ±0.25%， 0~24mA ±0.5%

• Size：185 X 78 X 38mm

FEATURES

► Provide the quality and accuracy of handheld calibrator of precision current source.

► Portable instrument for calibrating process devices and measuring process signals.

► Adjustable 0-24 mA current source, 2 ranges.

► Current calibrator drives loads up to 500 ohms.

一般規格

顯示 (Display)

LCD display, max. display counts 1999. 13 mm ( 0.5" ) digit size.

功能 (Function)

mA Current source, 2 ranges.

0 - 19.99 mA x 0.01 mA.

0 - 24.0 mA x 0.1 mA.

取樣 (Sampling)

Approx. 0.4 second.

操作溫度 (Operating Temp.)

0 to 50℃ (32 to 122℉).

操作溼度 (Operating Humidity)

Less than 80% RH.

電源供應 (Power Supply)

DC 9V battery, 006P, MN1604(PP3) or equivalent. Heavy duty or Alkaline type.

重量 (Weight)

265 g/0.58 LB ( including battery ).

大小 (Size)

185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ).

附件 (Accessories Included)

Operational manual............................... 1 PC.

Cable with the alligator pairs ( red & black ), LN-TL421...................... 1 PC.

電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃

* FS : full scale
