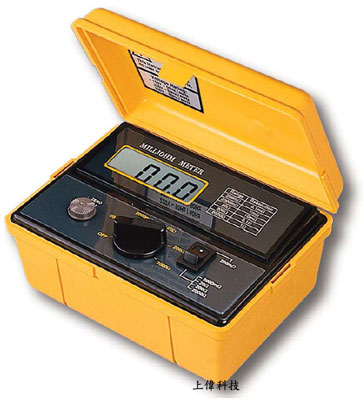

MO-2001 微阻計

特色

• 測量範圍：0.1m ~ 2000歐姆 ±0.75%

• 採四線式兩對鍍金夾線量測方法

• 可準確測量及低阻抗值

• 具有外部歸零調整’可提高準確度

• 採用大型液晶顯示器，容易讀取

• 電源：AC110V或220V兩種選擇(訂購時需註明)

• Size：160 X 120 X 85mm

FEATURES

► 4 terminal devices for accurate measurement of very low resistance

► Ideal for measuring the resistance of the motor coil, transformer, PCB layout.

► Ideal for testing protective conductors, lightning conductors and welded points.

► Wide measuring range, 0.1 m ohm - 2000 ohm, 5 ranges.

► 18 mm, large size LCD display, easy to read-out.

► LSI circuit provides high accuracy, reliability and durability.

► Built-in over input indication.

► Durable & portable housing plastic case with the front protective cover.

一般規格

顯示 (Display)

18 mm (0.7") LCD ( Liquid Crystal Display). Max. indication 1999.

範圍 (Range)

200 m ohm, 2,000 m ohm, 20 ohm, 200 ohm, 2000 ohm.

歸零調整 (Zero Adjustment)

External adjustment for zero value of the display.

輸入端子 (Input Terminal)

4 terminal input, accurate for low ohms measuring.

過載輸入顯示 (Over input Indication)

Indication of "1".

取樣時間 (Sampling Time)

Approx. 0.4 sec.

操作溫度 (Operating Temp.)

0 ℃ to 50℃ ( 32 ℉ to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80 % R.H..

電源供應 (Power Supply)

AC 110V 15%, 50/60 Hz or AC 220V/240V 15%, 50/60 Hz.

電源損耗 (Power Consumption)

Approx. 2 VA.

體積 (Dimension)

160 x 120 x 85 mm, with housing front cover.

重量 (Weight)

Approx. 680 g (1.5 LB).

附件 (Standard Accessories)

Power cable......................................... 1 PC.
4 wire with 2 clips................................. 1 pair
Instruction Manual................................ 1 PC.

電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃

Remark : When order the MILLIOHM METER, should inform the power supply type is AC 110V, 220 V/240 V, the other should indicate the plug type(USA, GERMANY..) of the power cord.
