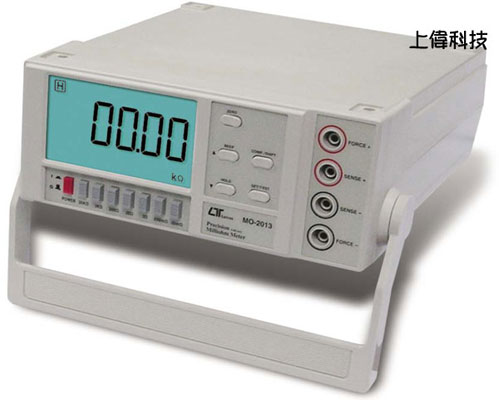

MO-2013 高精度微電阻計
簡介
-
4 1/2 大型液晶顯示器，具有背光功能
-
測量範圍：0.001m ~ 19.999K歐姆
-
具有計算電纜線長度功能
-
具有過高／過低範圍警報(Hi/Lo)設定
-
具有符號及峰鳴判別指示功能(警報設定)
-
工作電壓：AC110V或220V兩種選擇(訂購時需註明)
-
RS-232 / USB 連接介面 (軟體選購)
-
Size：280 X 210 X 90mm
特色
採用四線式測量兩只克林分夾,可測得極低之精確阻抗.
品質控管可輸入上/下限及良品範圍設定功能
內建蜂鳴聲(良品狀態)可幫助Q.C.判別
寬廣的範圍測量0.001mΩ~20KΩ,分為7個檔位.
RS-232 / USB 電腦連接介面
26.7 mm 大型具背光 LCD 顯示器 , 容易讀取
內建輸入過載保護功能
耐久型塑膠結構的外殼設計
FEATURES
4 terminal devices for accurate measurement of very low resistance.
Ideal for measuring the resistance of components precisely.
Ideal for testing protective conductors, lightning conductors and welded points.
High/Good/Low set-function for input quality control.
Build in buzzer sound (GOOD STATUS) to assist the Q.C. judgment.
Especial "CALCULATE" function to measure cable / wire length.
Wide measuring range, 0.001 m ohm - 20K ohm, 7 ranges.
RS232/USB computer interface.
26.7 mm large size and back-light LCD display, easy read-out.
LSI circuit provides high accuracy, reliability and durability.
Built-in over input protection.
Durable bench type housing plastic case stand.
一般規格
測試範圍 (測試電流) - Test Range (Test Current)
- 20 m ohm ( 1 A DC )
- 200 m ohm ( 1 A DC )
- 2 ohm ( 100 mA DC )
- 20 ohm ( 10 mA DC )
- 200 ohm ( 1 mA DC )
- 2 K ohm ( 100 uA DC )
- 20 K ohm ( 10 uA DC )
警告設定 (Warning Setup)
- * Warning LCD Indicator
- * Buzzer
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- AC 110V +/- 15%, 50/60 Hz or AC 230V +/- 15%, 50/60 Hz.
電源消耗 (Power Consumption)
- AC 110V : Approx. 33 mA
- AC 230V : Approx. 15 mA
電源供應保險絲 (Power Supply)
- 500 mA / 250 V
- Size : 5 X 20 mm dia
資料輸出
- RS 232/USB PC serial interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
體積 (Dimensions)
- 280 x 210 x 90 mm ( 11.0 x 8.3 x 3.5 inch)
重量 (Weight)
- Approx. 2.04 Kg ( 4.49 LB ).
附件 (Accessories Included)
- Power Cord...............................1 PC.
- 4 wire with 2 Kelvin clips...........1 pair.
- Instruction Manual....................1 PC.
選購附件及轉換器
- RS232 cable, UPCB-02
- USB cable, USB-01
- Data Acquisition software, SW-U801-WIN
電器規格 (23±5 ℃)
| 範圍 |
解析度 |
測試電流 |
開路電壓 |
精確度 |
| 20 m ohm |
0.001 m ohm |
1 A |
Approx. DC 4.54 V |
± ( 0.2 % + 12 d ) |
| 200 m ohm |
0.01 m ohm |
1 A |
Approx. DC 4.54 V |
± ( 0.2 % + 4 d ) |
| 2 ohm |
0.0001 ohm |
100 mA |
Approx. DC 4.50 V |
| 20 ohm |
0.001 ohm |
10 mA |
Approx. DC 4.06 V |
| 200 ohm |
0.01 ohm |
1 mA |
Approx. DC 3.51 V |
| 2 K ohm |
0.0001 K ohm |
100 uA |
Approx. DC 3.08 V |
| 20 K ohm |
0.001 K ohm |
10 uA |
Approx. DC 2.32 V |
@ 精確度基礎在讀值 (The above accuracy is based on the reading value)
@ 測試需低於 3 V/M RF電場強度及 30 MHz 頻率之環境下 (Spec. tested under the environment RF Field Strength less than 3 V/M & frequency less than the 30 MHz only.)
|
