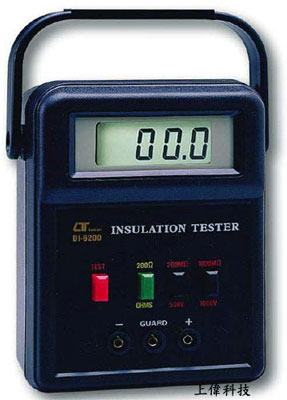

DI-6200 絕緣阻抗測試器
特色
-
測量範圍： 絕緣阻抗： 200M歐姆 / 500V ±3% , 1000M歐姆 / 1000V ±3%
-
電阻：0.1 ~ 200歐姆 ±1%
-
內建過載保護裝置及電力不足指示功能
-
採用大型液晶顯示器，容易讀取
-
Size：170 X 127 X 78mm
FEATURES
Digital display, easy and correct read-out.
Multi Mega ohm range with 0-200 Mega ohm at 500 V DC, 0-1000 Mega ohm at 1000 V DC.
Build in precision 200 ohm range easy for measuring low resistance such as motor windings, relay coils etc.
18 mm (0.7") large LCD display.
Battery operating easily to carry with user.
LCD display allows clear read-out even at bright place.
LSI-circuit provides high reliability and durability.
Built-in over-input and low battery indication.
Overload protection for each range.
Automatic zero adjust.
Durable & portable housing case with handle.
一般規格
顯示 (Display)
- 18 mm (0.7") LCD ( Liquid Crystal Display ), Max. indication 1999.
測量 (Measurement)
- Insulation : 200M ohm/500V , 1000M ohm/1000V.
- OHMS : 200 ohm
取樣時間 (Sampling Time)
- 0.4 second.
百萬歐姆反應時間 (Mega ohm Respond Time)
- Max. approx. 2.5 second.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
過載輸入顯示 (Over-input)
- Indication of "1" .
操作溫度 (Operating Temp.)
- 0 ℃ to 50℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H..
電源供應 (Power Supply)
- DC 9V, 1.5V AA(UM-3) battery x 8 PCs. Alkaline or heavy duty battery.
電源損耗 (Power Consumption)
- Approx. 100 mA (1000M ohm/1000V range).
- Approx. 50 mA (200 M ohm/500V range).
- Approx. 1.6 mA (200 ohm/OHMS range).
體積 (Dimension)
- 170 x 127 x 78 mm (6.7 x 5.0 x 3.1 inch), with housing front cover.
重量 (Weight)
- 560 g (1.2 LB).
附件 (Standard Accessories)
- Instruction Manual .................1 PC.
Alligator Clips, AL-03.............1 pair
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
百萬歐姆 (Mega ohm)
| Range |
Accuracy |
Resolution |
Open Circuit voltage |
| 200 Mega ohm ( 500V ) |
± (3% + 1d) |
0.1 M ohm |
Approx.DC 480 V (over 8 M ohm) |
| 1000 Mega ohm ( 1000V ) |
± (3% + 1d) |
1 M ohm |
Approx. DC 975 V (over 8 M ohm) |
* Input terminal Short circuit current is approx. 0.2 mA. for 200 M OHM/500 V range.
* Input terminal Short circuit current is approx. 0.2 mA. for 1000 M OHM/1000 V range.
歐姆 (ohm)
| Range |
Accuracy |
Resolution |
Open Circuit voltage |
| 200 ohm |
± (1% + 1d) |
0.1 ohm |
Approx. 3 V |
* Overload Circuit Protection AC/DC 500V (within 20 sec)
|
