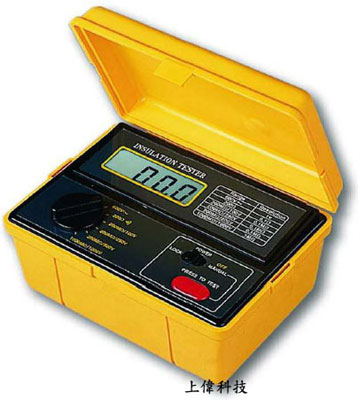

DI-6300 絕緣阻抗測試器
特色
絕緣阻抗：200M歐姆 / 100V
200M歐姆 / 250V
200M歐姆 / 500V
1000M歐姆 / 1000V ±3%
-
交流電壓：0 ~ 600V ±1%
-
電阻：0.1 ~ 200歐姆±1%
-
內建過載保護裝置及電力不足指示功能
-
採用大型液晶顯示器，容易讀取
-
Size：160 X 120 X 85mm
FEATURES
Digital display, easy and correct read-out.
Multi-function for insulation measurement of 200 Megohm (100V) 200 Megohm(250V), 200 Megohm(500V), 1000 Megohm(1000V).
Build in the ACV & OHM measurement function.
Precision 200 ohm range easy for measuring low resistance such as motor windings, relay coils etc.
Insulation measurement with high drive current, short circuit current > 2.55 mA.
18mm (0.7") large LCD display.
Battery operating easily to carry with user.
LCD display allows clear read-out even at bright place,
LSI-circuit provides high reliability and durability.
Built-in over-input and low battery indication.
Overload protection for each range.
Automatic zero adjust & automatic circuit discharge.
Durable & portable housing case with the front protective cover.
一般規格
顯示 (Display)
- 18 mm (0.7") LCD ( Liquid Crystal Display ), Max. indication 1999.
測量 (Measurement)
- Insulation : 200 Megohm/100V, 200 Megohm/250V, 200 Megohm/500V, 1000 Megohm/1000V.
- ACV : 600 ACV
- OHMS : 200 ohm
取樣時間 (Sampling Time)
- 0.4 second.
百萬歐姆反應時間 (Mega ohm Respond Time)
- Max. approx. 2.5 second.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
過載輸入顯示 (Over-input)
- Indication of "1" .
操作溫度 (Operating Temp.)
- 0 ℃ to 50℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H..
電源供應 (Power Supply)
- DC 9V (6 x 1.5V AA battery, recommended to use the alkaline or heavy duty battery).
電源損耗 (Power Consumption)
- Approx. 100 mA (1000 Megohm /1000V range).
Approx. 28 mA (200 Megohm/500V range).
Approx. 28 mA (200 Megohm/250V range).
Approx. 13 mA (200 Megohm/100V range).
Approx. 10 mA (200 ohm/OHMS range).
Approx. 1.6 mA (600 ACV/ACV range).
體積 (Dimension)
- 160 x 120 x 85 mm (6.3 x 4.7 x 3.3 inch), with housing front cover.
重量 (Weight)
- 575 g ( 1.3 lb ).
附件 (Standard Accessories)
- Instruction Manual .................1 PC.
Alligator Clips, AL-03.............1 pair
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
百萬歐姆 (Mega ohm)
| Range |
Accuracy |
Resolution |
Test Voltage |
Short Circuit Current |
| 200 Megohm(100V) |
± (3% + 1d) |
0.1 Meg ohm |
> 2 M, 100 V + 5 % |
Approx. 2.55 to 2.8 mA |
| 200 Megohm(250V) |
± (3% + 1d) |
0.1 Megohm |
> 2 M, 250 V + 5 % |
| 200 Megohm(500V) |
± (3% + 1d) |
0.1 Megohm |
> 2 M, 500 V + 5 % |
| 1000 Megohm(1000V) |
± (3% + 1d) |
1 Megohm |
> 10 M, 1000 V + 5 % |
Remark : Accuracy are specified under the measuring value > 2 Megohm.
歐姆 (ohm)
| Range |
Accuracy |
Resolution |
Open Circuit voltage |
Overload Circuit Protection |
| 200 ohm |
± (1% + 1d) |
0.1 ohm |
Approx. 3 V |
AC/DC 500V (within 20 sec) |
交流電壓 (AC VOLTAGE)
| Range |
Accuracy |
Resolution |
Input Impedance |
Overload Circuit Protection |
| 600 ACV |
± (1% + 2d) |
1 ACV |
4.5 Megohm |
600 ACV |
|
