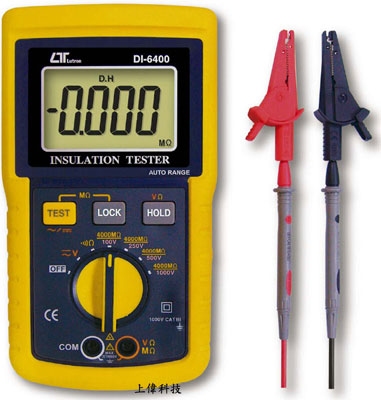

DI-6400 絕緣阻抗測試器(高阻計)
特色
-
測量範圍：4MΩ / 40MΩ / 400MΩ / 4000MΩ
(100V / 250V / 500V / 1000V) CAT Ш 1000V
-
電阻：0 ~ 400Ω /4000Ω . 自動換檔.
-
-
-
-
-
-
-
FEATURES
Digital display, easy and correct read-out.
Auto-range and multi-function for insulation measurement of 4/40/400/4000 MΩ ( 100 V, 250 V, 500 V, 1000 V ).
Insulation measurement with auto discharge function, safety.
Build in the ACV & DCV & OHMS measurement function.
Precision 400 ohm & 4000 ohm auto-range easy for measuring low resistance such as motor windings, relay coils etc.
A continuity beeper is equipped in OHM range.
Data hold function to lock the current reading.
Lock & Test functions offer worker's safety and easy operation.
77 X 49 mm (1.06" height) large LCD display.
Battery operating easily to carry with user.
LCD display allows clear read-out even at bright place.
LSI-circuit provides high reliability and durability.
Built-in over-input and low battery indication.
Overload protection for each range.
Automatic zero adjust & automatic circuit discharge.
Durable & portable housing case with the front protective cover.
RS-232 computer interface.
Powered by AA DC 1.5V X 8 batteries.
一般規格
顯示 (Display)
- 27 mm (1.06") LCD (Liquid Crystal Display), Max. indication : 6100 ( V ), 4200 ( MΩ ), 4200 ( Ω ).
測量 (Measurement)
- Insulation :
- 4/40/400 MΩ /100 V
- 4/40/400/4000 MΩ /250 V
- 4/40/400/4000 MΩ /500 V
- 4/40/400/4000 MΩ /1000 V
- DCV : 600.0 V
- ACV : 600.0 ACV
- OHMS : 400.0/4000 Ω
取樣時間 (Sampling Time)
- 0.4 second.
四百萬歐姆反應時間 (4Mega ohm Respond Time)
- Max. approx. 4.0 second.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
過載輸入顯示 (Over-input)
- Indication of "- - - -" .
操作溫度 (Operating Temp.)
- 0 ℃ to 50℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H..
電源供應 (Power Supply)
- 1.5V AA ( UM-3 ) battery x 8 PCs, alkaline or heavy duty battery).
電源損耗 (Power Consumption)
- Approx. 112 mA (100M ohm/1000V range).
- Approx. 70 mA (100 M ohm/500V range).
Approx. 58 mA (100 M ohm/250V range).
Approx. 53 mA (100 M ohm/100V range).
Approx. 18 mA ( ACV range).
Approx. 18 mA ( DCV range).
Approx. 65 mA (0 ohm/OHM range).
體積 (Dimension)
- 225 x 125 x 64 mm (8.86 x 4.92 x 2.52 inch),
重量 (Weight)
- 819 g / 1.80 LB (includes 8 PCs batteries).
附件 (Standard Accessories)
- Instruction Manual .................1 PC.
Test leads ( TL-88 )............................. 1 set - Heavy duty alligators ( AL-05 )..............1 pair
選購附件 (Optional Accessories)
- RS232 cable, UPCB-02
USB cable, USB-01 - Data Acquisition software, SW-U801-WIN
-
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
百萬歐姆 (Mega ohm)
| Range |
Accuracy |
Resolution |
| 4/40/400/4000 M ohm
(100V/250V/500V/1KV)
|
± ( 3% + 5d)
< 2000 M ohm
|
1 K/10 K/0.1 M/1 M ohm |
| ± ( 5% + 5d)
≧ 2000 M ohm
< 4000 M ohm
|
歐姆 (ohm)
| Range |
Accuracy |
Resolution |
Open Circuit voltage |
| 400/4000 ohm |
± ( 1% + 2d) |
0.1/1 ohm |
Approx. 4.7 V |
* Overload Circuit Protection AC/DC 500V (within 20 sec)
直流電壓 (DC VOLTAGE)
| Range |
Accuracy |
Resolution |
Input Impedance |
| 600 DCV |
± ( 1.5% + 2d) |
0.1 DCV |
10 M ohm |
* Overload Circuit Protection AC/DC 600V
交流電壓 (AC VOLTAGE)
| Range |
Accuracy |
Resolution |
Input Impedance |
| 600 ACV |
± (1% + 2d) |
0.1 ACV |
10 Megohm |
* Overload Circuit Protection AC/DC 600V
|
