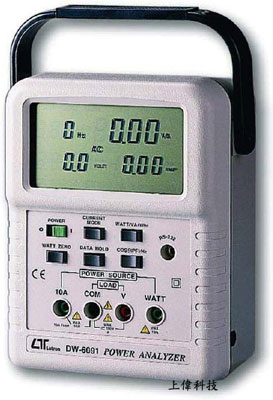

DW-6091 電力分析儀(功率計)
特色
-
交直流電壓 : 0.1 ~ 600V ±1%
-
交直流電流 : 0 ~ 10A (外接CT可至 2000A)
-
瓦特 : 1 ~ 6000Wat (外接 CT 可至 999.9KW)
-
功率因素 : 0.01 ~ 1.00 ±1.5%
-
視在功率 : 0.01 ~ 6000VA ±2%
-
瓦特/小時 : 0.001 ~ 9999K Whr
-
頻率 : 10 ~ 999Hz
-
RS-232 / USB 輸出介面 (軟體選購)
-
Size：170 X 128 X 78mm
FEATURES
► Multi-functions : WATT, VA, Whr, Power factor, ACV, ACA, Hz.
► True AC power ( Watt ) & apparent power ( VA ) measurement.
► True rms display for ACV, ACA.
► Supper large LCD, easy to read-out, display the Watt, Power factor, Voltage & Current value at the same time.
► Auto range.
► Built-in data hold function.
► RS-232 output interface.
► Exclusive custom exclusive design LSI circuit, provides high accuracy, reliability and durability.
► Built-in over input indication.
► Power supply by batteries.
► Built-in low battery indicator .
► Durable plastic housing case with handle.
一般規格
顯示 (Display)
- * 93 mm x 52 mm large LCD ( Liquid Crystal Display) display.
- * Multi-display unit, show Volt, Ampere, Watt, Power factor or Hz at same time.
測量 (Measurement)
- WATT, VA, Whr,, Power factor, ACV, ACA, Hz
歸零調整 (Zero Adjust)
- Watt : External adjustment by push button.
- ACV, ACA : Automatic adjustment.
過載輸入顯示 (Over-input Indication)
- Indication of " - - - - or " - - - - .
資料輸出 (Data Output)
- RS232 serial interface.
取樣時間 (Sampling Time)
- Approx. 1.5 Sec.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
電源供應 (Power Supply)
- DC 12V, 1.5 V AA (UM-3) battery x 8 PCs.
電源損耗 (Power Consumption)
- Battery power : Approx. DC 30 mA
體積 (Dimension)
- 175 x 130 x 83 mm ( 6.9 x 5.1 x 3.3 inch ).
重量 (Weight)
- 795 g ( 1.75 LB ).
附件 (Standard Accessories)
- Test lead ( red & black )..................... 1 pair.
- Instruction Manual .............. 1 PC.
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
瓦特 (交流 , 實際功率) 直接輸入電流模式 : Watt (AC, true power), current mode from direct input
| Range |
Resolution |
| 6,000 Watt |
1 Watt |
瓦特 (交流 , 實際功率) 外接CT電流輸入模式 : Watt (AC, true power), current input cooperate with CT ( current transformer )
| Range |
Resolution |
| 9,999 Watt |
1 Watt |
| 99.99 KW |
0.01 KW |
| 999.9 KW |
0.1 kW |
VA (交流 , 視在功率) 直接輸入電流模式 : VA ( AC, Apparent Power ) current mode from direct input
| Range |
Resolution |
| 99.99 VA |
0.01 VA |
| 999.9 VA |
0.1 VA |
| 6,000 VA |
1 VA |
功率因素 : POWER FACTOR
| Range |
Resolution |
| 0.01 to 1.00 |
0.01 |
交流電壓 : AC VOLTAGE ( true rms )
| Range |
Resolution |
| 0.1 V to 299.9 V |
0.1 V |
| 300 V to 600 V |
1 V |
交流電流 (直接輸入電流模式) : AC CURRENT ( true rms )
| Range |
Resolution |
| 0.01 A to 10.00 A |
10 mA |
交流電流 (外接CT電流輸入模式) : AC CURRENT current mode from CT ( current transformer )
| Range |
Resolution |
| CT 100/5A, 0.1 - 200.0 A |
0.1 A |
| CT 1000/5A, 1 - 2000 A |
1 A |
瓦特小時 (直接輸入電流模式) : Watt Hour (current from direct input)
| Range |
Resolution |
| 0.001 Whr to 9.999 Whr |
0.001 Whr |
| 10.00 Whr to 99.99 Whr |
0.01 Whr |
| 100.0 Whr to 999.9 Whr |
0.1 Whr |
| 1000 Whr to 9999 Whr |
1 Whr |
| 10 K Whr to 99.99 K Whr |
10 Whr |
| 100 K Whr to 999.9 K Whr |
100 Whr |
| 1000 K Whr to 9999 K Whr |
1 K Whr |
赫芝 (Hz)
| Range |
Resolution |
| 10.0 Hz to 99.9 Hz. |
0.1 Hz |
| 100 Hz to 999 Hz. |
1 Hz |
|
