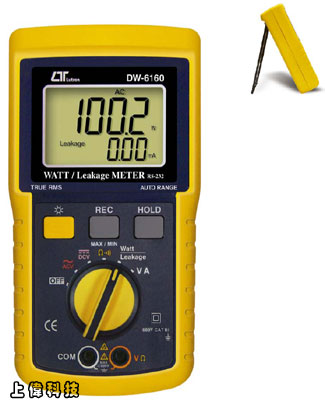

DW-6160 瓦特/洩漏電流計

特色

• 交流電壓 : 0.1 ~ 600.0V ±1%

• 交流電流 : 0.01 ~ 10.00A

• 瓦特(AC) : 0.1 ~ 2500Watt ±1.5%

• 洩漏電流(AC)：0.01 ~ 20.00mA ±1%

• 電阻 : 1Ω ~ 20.00KΩ ±1%

• 可記錄最大值、最小值及讀值鎖定

• RS-232 / USB 輸出介面 (軟體選購)

• Size：224 X 125 X 65mm

FEATURES

* Professional WATT meter with Leakage current tester, digital display , battery operated.

* LSI - circuit provides high reliability and durability.

* Measurement :

  WATT ( AC ) : 2500 W x 0.1 W/1 W.

  Leakage current ( AC mA ) : 20.00 mA x 0.01 mA.

  ACV : 600.0 V x 0.01 V/0.1 V.

  ACA : 10.00 A x 0.001 A/0.01 A.

  DCV : 600.0 V x 0.01 V/0.1 V.

  ohm : 2 K ohm x 0.001 K ohm , 20 K ohm x 0.01 K ohm

* Low Watt measurement, 1.0 to 999.9 Watt x 0.1 Watt.

* True Power and wide range , 0 to 2500 Watt .

* True RMS ACV, ACA measurement.

* Leakage current ( AC mA ) detection.

* Auto range.

* Continuity beeper.

* Large LCD , dual value display with backlight.

* Memory Record ( Max., Min. ).

* Data Hold.

* RS232/USB computer interface.

* Power : DC 1.5V ( UM-3, AA ) x 8 PCs or DC 9V adapter in.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit

顯示 (Display)

LCD display, max. reading 5999.

Digit size : 74x47 mm.

Dual value display with backlight

測量 (Measurement)

ACV : 0.1 to 600.0 V

DCV : 0.1 to 600.0V

Ω : 0.001 kΩ to 20.00 kΩ

WATT : 0.1 W to 2500 W

Leakage current : 0.01m A to 20.00 m A

ACA : 0.001A to 10.00 A

過載輸入 (Over input)

"---- " mark indication .

極性 (Polarity)

** reverse polarity.

歸零調整 (Zero Adjustment)

Automatic adjustment.

取樣時間 (Sampling Time)

Approx. 1.5 Sec.

資料鎖定 (Data Hold)

Freeze the display reading.

記憶回叫 (Memory Recall)

Maximum & Minimum value.

USB/RS232 資料輸出 (Data Output USB/RS232 * Computer interface)

RS232 computer serial interface :

* Connect the optional USB cable USB-01 will get the USB plug.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

操作溫度 (Operating Temp.)

0 to 50 ℃ ( 32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80 % R.H.

電源供應 (Power Supply)

* DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy duty battery).

* AC to DC 9V power adapter. ( AC/DC power adapter is optional ).

電源損耗 (Power Consumption)

Approx. DC 33 mA.

重量 (Weight)

822 g/1.82 LB.

體積 (Dimension)

224 x 125 x 65 mm ( 8.8 x 4.8 x 2.5 inch )

附件 (Standard Accessories)

* Instruction manual.......................1 PC

* Test lead ( Red and Black ).................. 1 pair

選購附件 (Optional Accessories)

* AC to DC 9V adapter.

* USB cable, USB-01.

* RS232 cable, UPCB-02.

電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃

交流/直流電壓 (AC / DC VOLTAGE)

* Measuring Signals come from the front panel terminals.

* Auto range.

* Max. input voltage : AC 600 V, DC 600 V.

* ACV accuracy is test under input signal is sine wave, 50/60 Hz

* ACV frequency response is from 40 to 400 Hz.

* ACV is true rms measurement.

歐姆 (電阻) OHMS ( Resistance )

瓦特 (實功率) WATT ( true power )

* 0.1 W resolution : Input voltage < 200 AVC or Input current < 2 ACA.

  Beyond above input, the resolution will still be 1 W.

* Measuring Signals come from the top power plug input.

* Accuracy is test under input signal is sine wave, 50/60 Hz

* ACV, ACA frequency response is from 40 to 400 Hz.

* Max. input voltage : AC voltage 250 V, AC current : 10 A.

洩漏電流 Leakage ( AC mA )

V, A ( true rms )

* ACV, 0.01 V resolution is valid from 0.01 V to 99.99 V.

   ACV, 0.1 V resolution is valid from > 100.0 V.

* ACA, 0.001 A resolution is valid from 0.001 A to 1.999 A.

   ACA, 0.01 A resolution is valid from > 2 A.

* Measuring signals come from the top power plug input ( power source ).

* Auto range.

* ACV, ACA accuracy is test under input signal is sine wave, 50/60 Hz

* ACV, ACA frequency response is from 40 to 400 Hz.

* ACV, ACA is true rms measurement..

* Max. input voltage : AC voltage 250 V, AC current : 10 A.
