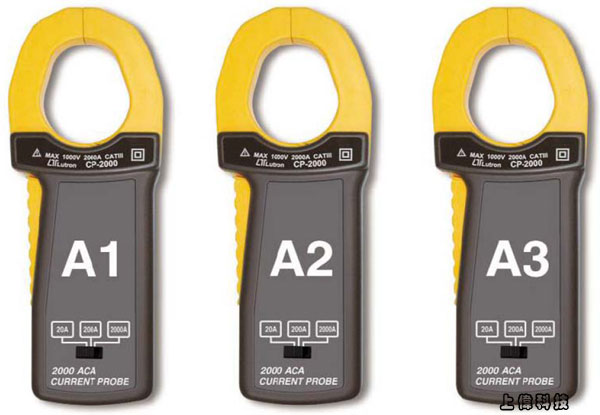

CP-2000 電流鉤部2000A
簡介
-
測量範圍 : 20A / 200A / 2000A三檔
-
輸出訊號 : 100mV/A , 10mV/A , 1mV/A
-
輸出電壓 : 2ACV (20A / 200A / 2000A)
-
鉤部孔徑：51mm
-
工作頻率：50/60HZ
-
輸出訊號線長4米
-
DW-6095專用鉤部
FEATURES
Range : 20 A/200 A/2000 A.
Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.
Output voltage : 2 ACV ( 20 A, 200 A, 2000 A ).
Max. conductor size : 51 mm ( 2.1 inch ) Dia.
Operation frequency ; 50 Hz/60 Hz.
Optional current probe for DW-6093, DW-6095.
When change the new probe, the calibration procedures are not necessary.
Output cable : 4 meters wire, used the banana plugs, durable and safety.
Power supply is from the meter, battery is not necessary.
|
|
|
|
|
| |
 |
|
