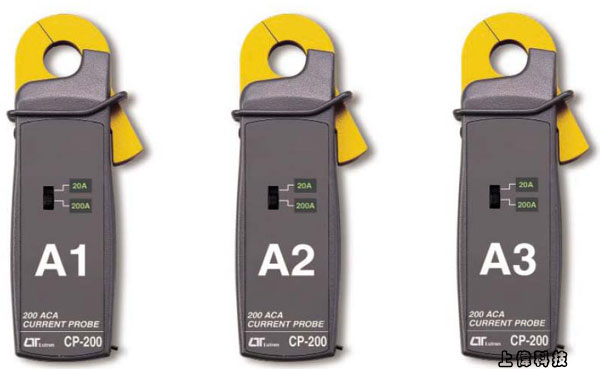

CP-200 電流鉤部200A
簡介
-
測量範圍 : 20A / 200A 兩檔
-
輸出訊號 : 10mV/A , 1mV/A
-
輸出電壓 : 200ACmV (20A / 200A)
-
鉤部孔徑：19mm
-
工作頻率：50/60HZ
-
輸出訊號線長1.5米
-
DW-6095專用鉤部
FEATURES
Range : 20 A/200 A.
Output sensitivity : 10 mV/A, 1 mV/A.
Output voltage : 200 ACmV ( 20 A, 200 A ).
Max. conductor size : 19 mm ( 0.75 inch ) Dia.
Operation frequency ; 50 Hz/60 Hz.
Optional current probes for DW-6093, DW-6095.
When change the new probe, the calibration procedures are not necessary.
Output cable : 1.5 meters wire, used the banana plugs, durable and safety.
battery is not necessary.
|
|
|
|
|
| |
 |
|
