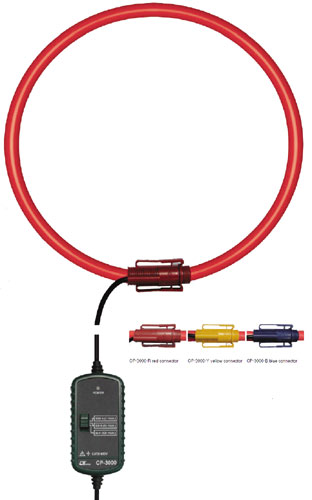

CP-3000 可繞式電流鉤部3000A
簡介
-
測量範圍 : 30A / 300A / 3000A三檔
-
輸出訊號 : 100mV/A , 10mV/A , 1mV/A
-
輸出電壓 : 3ACV (30A / 300A / 3000A)
-
鉤部孔徑：610mm
-
工作頻率：50/60HZ
-
輸出訊號線長4米
-
DW-6095專用鉤部
FEATURES
Model : CP-3001-R ( red connector ) ; CP-3001-Y ( yellow connector ) CP-3001-B ( blue connector )
Range : 30 A/300 A/3000 A.
Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.
Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).
Flexible probe length : 600 mm ( 23.6 inch ) ; Flexible probe diameter : 15 mm.
Operation frequency ; 50 Hz/60 Hz.
Optional current probe for DW-6093, DW-6095.
When change the new probe, the calibration procedures are not necessary to be executed.
Output cable : 2 cables (4 meters in length ), use the banana plugs, durable and safety.
Power supply : DC 1.5V battery ( UM-3/AA ) x 2 PCs or DC 9V adapter in ; AC to DC 9V adapter is optional
|
|
