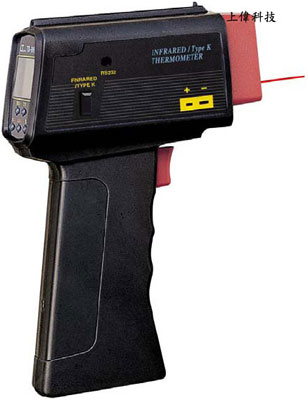

TM-909AL 紅外線溫度計

特色

• 測量範圍 :

                                 IR:-20 ~ 400°C (-4~752°F) ±3%

                                 Type K:-100 ~ 1300°C (-148~2372°F) ±1%

• 放射率設定 : 0.20 ~ 1.00

• 攝氏(°C) / 華氏(°F)單位選擇

• 距離與量測點比(D:S)=7:1

• 可記錄最大值'最小值及讀值鎖定

• 具有雷射瞄準光點

• Size：195 X 120 X 58mm

FEATURES

► 2 in 1, Infrared thermometer + Type K thermometer.

► Infrared thermometer, non-contact temperature measurement, -20 ℃ to 400 ℃ ( -4 ℉ to 752 ℉ ).

► Microcomputer circuit with high performance.

► Wide temperature measuring range.

► 0.1 ℃ display resolution both for the measurement of IR thermometer and Type K thermometer.

► Build in ℃ & ℉ select button on the front panel.

► Data hold function.

► Memory function to record the maximum & minimum reading with recall.

► Build the REL button, useful for relative measurement.

► Sensor select button on the front panel, easy to change different type probe.

► Emissivity adjustment for IR thermometer.

► Red laser target light guide for IR thermometer.

► RS 232 data output, easy cooperate with computer.

► Optional data acquisition software for data record.

► Auto power shut off saves battery life.

► Built-in low battery indicator.

► Heavy duty & compact housing case with stand.

► Operates from 006P DC 9V battery.

一般規格

顯示 (Display)

Dual display with annunciator :

* Main display : 10 mm (0.4") LCD, 5 digit.

* Small display : To show the emissivity value.

感應器型式 (Sensor Type)

1. Infrared thermometer ( Non contact temperature measurement )

2. Type K thermometer

功能 (Functions)

℃, ℉, Data hold, Memory ( Max., Min. ), Relative measurement, Emissivity adjustment (IR thermometer).

解析度 (Resolution)

0.1 degree.

電路 (Circuit)

Exclusive microcomputer circuit, the software build in linearity correction instead the traditional hardware circuit.

放射率調整 (Emissivity Adjustment)

Range : 0.20 to 1.00. Adjustment by pushing button on front panel.

光源 (Target Guide)

Red color, laser power less than 1 mW.

感溫棒輸入接頭 (Probe Input Socket)

Standard 2 pin thermocouple socket.

取樣時間 (Sampling Time)

Approx. 1 second.

鎖定功能 (Hold Function)

To freeze the display reading value.

記憶回叫 (Memory Recall)

Memorize the Maximum, Minimum reading with recall.

差距值調整 (Offset Adjustment)

Available for thermocouple thermometer offset adjustment by pushing button on front panel.

過載指示 (Over Indication)

Show " - - - - ".

資料輸出 (Data Output)

RS232 PC serial interface.

電源供應 (Power Supply)

Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent.

電源損耗 (Power Consumption)

Approx. DC 12 mA ( w/o tagret light on ).

Approx. DC 23 mA ( with target light on ).

* Above consumption value is calculated under the function of IR thermometer.

操作溫度 (Operating Temp. )

0 to 50 ℃ (32 to 122 ℉).

操作溼度 (Operating Humidity)

Less than 80% RH.

重量 (Weight)

260 g/0.57 LB.

體積 (Dimension)

195 x 120 x 57 mm. ( 7.7 x 4.7 x 2.2 inch).

附件 (Standard Accessory)

Operational manual..... 1 PC.

選購附件 (Optional Accessory)

Hard carrying case ; Model : CA-06

USB cable ; Model : USB-01

RS232 cable ; Model : UPCB-02

Type K thermocouple probe. ; TP-01, TP-02A. TP-03, TP-04

Data acquisition software ; Model : SW-U801-WIN

電氣規格 ELECTRICAL SPECIFICATIONS (23 ±5 ℃)

紅外線熱電偶 (Infrared Thermometer)

 解析度/範圍 (Resolution/ranges)

0.1℃ : - 20 ℃ to 400 ℃

0.1℉ : -4 ℉ to 752 ℉

精確度 (Accuracy)

± 3 % of reading or ± 3 ℃( 5 ℉), which ever is greater.

* Accuracy test under the measurement range within - 10 ℃ to 350 ℃

* Meter operating temp. within 23± 5 ℃ and the emissivity value of measurement target set to 0.95.

* Spec. tested under the 20 cm dia. black body, the measuring distance from the probe sensing Head is 30 cm.

溫度感應器 (Temp. Sensor)

Thermocouple pie.

放射率設定 (Emissivity Setting)

* By push button. Setting range : 0.20 to 1.00.

* The default emissivity value is 0.95, which will cover 90% of a typical application.

測量波長區域 (Measurement Wave length Region)

6 to 12 micro meter.

距離因素 (Distance Factor)

D/S : Approx. 7:1. (D - Distance, S - Spot.)

K TYPE 熱電偶 (Type K Thermometer)

Remark :
a. Accuracy value is specified for the meter only.
b. Accuracy test is based on the environment temperature of 23 ± 5℃.
c. Linearity Correction : Memorize the thermocouple's curve into the CPU circuit.
