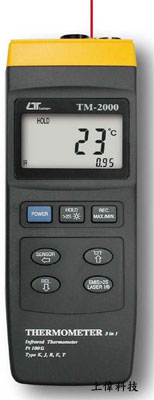

TM-2000 多功能紅外線溫度計
特色
-
測量範圍 : IR : -20 ~ 400°C ±3%
-
可外接溫度測棒 PT-100.K.J.T.E.R等Type
-
放射率設定 : 0.20 ~ 1.00
-
距離與量測點比(D:S)=7:1
-
可 記錄最大值'最小值及讀值鎖定
-
具有雷射瞄準光點
-
RS-232 / USB 連接介面(軟體選購)
-
Size：200 X 68 X 30mm
FEATURES
3 in 1, Infrared thermometer + Pt 100 ohm thermometer + Thermocouple ( Type K/J/R/E/T ) thermometer.
The best professional thermometer in the world.
Microcomputer circuit with high performance.
Wide temperature measuring range.
Build in ℃ & ℉ select button on the front panel.
0.1 degree resolution for Pt 100 ohm & type K/J/T/E.
Data hold function for storing the desired value on display.
Memory function to record the maximum & minimum reading.
Build in a REL button, useful for relative measurement.
LCD display with back light.
Sensor select button on the front panel, easy to change different type probe.
Infrared thermometer, non-contact temperature measurement, -20 ℃ to 400 ℃ ( -4 ℉ to 752 ℉ ), precise non contact temperature measurement.
Emissivity adjustment for IR thermometer.
Laser guide for IR temperature measurement.
4 wires PT 100 probe input, cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751, high precision.
Thermocouple probe accept 5 different types : type K, type J, type R, type T, type E.
RS 232 data output, easily cooperate with computer.
Optional data acquisition software for data record.
Auto power off saves battery life.
Built-in low battery indicator.
Heavy duty & compact housing case with stand.
Operate from 006P DC 9V battery.
Patent pending in TAIWAN, CHINA, USA, GERMANY......
一般規格
顯示 (Display)
- 51 mm x 32 mm supper large LCD display, 15 mm ( 0.6" ) digit size.
感應器型式 (Sensor Type)
- 1. Infrared thermometer ( Non contact temperature measurement )
- 2.Platinum Pt 100 ohm ( 0.00385 alpha coefficient, meet DIN IEC 751 )
- 2. Thermocouple probe, type K/J/T/E/R
功能 (Functions)
- ℃, ℉, Data hold, Memory ( Max., Min. ), Relative measurement, LCD back light, Emissivity adjustment (IR thermometer).
解析度 (Resolution)
- 1 degree or 0.1 degree.
電路 (Circuit)
- Exclusive microcomputer circuit, the software build in linearity correction function insteadof the traditional hardware circuit.
放射率調整 (Emissivity Adjustment)
- Range : 0.20 to 1.00. Adjustment by pushing button on front panel.
雷射規範 (Laser Guide)
- Red laser light, less than 1 mW, Meet EN60825
感溫棒輸入接頭 (Probe Input Socket)
- Pt 100 ohm probe : DIN 4 pin socket.
- Thermocouple probe : Standard 2 pin thermocouple socket.
取樣時間 (Sampling Time)
- Approx. 1 second.
鎖定功能 (Hold Function)
- To freeze the display reading value.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
差距值調整 (Offset Adjustment)
- Available for IR thermometer, Pt 100 ohm & Thermocouple thermometer Adjustment by pushing button on front panel.
過載指示 (Over Indication)
- Show " - - - - ".
資料輸出 (Data Output)
- RS232 PC serial interface.
電源供應 (Power Supply)
- Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 11 mA ( w/o laser light on ).
- Approx. DC 16 mA ( with laser light on ).
- * Above consumption value is calculated under the function of IR thermometer & without LCD back light.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 220 g/0.48 LB.
體積 (Dimension)
- HWD 220 x 68 x 30 mm ( 8.7 x 2.7 x 1.2 inch ).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional Accessory)
- * Temperature probe : TP-01, TP-02A, TP-03, TP-04
- * PT 100 ohm Temp. probe : TP-100
- * RS232 cable ; Model : UPCB-02
- * USB cable, Model : USB-01
- * Application software, windows version. ; Model : SW-U801-WIN
電氣規格
紅外線熱電偶 (Infrared Thermometer)
解析度/範圍 (Resolution/ranges)
- 0.1℃ : - 20 ℃ to 400 ℃
- 0.1℉ : -4 ℉ to 752 ℉
精確度 (Accuracy)
- ± 3 % of reading or ± 3 ℃( 5 ℉), which ever is greater.
- * Accuracy test under the measurement range within - 10 ℃ to 350 ℃
- * Meter operating temp. within 23± 5 ℃ and the emissivity value of measurement target set to 0.95.
- * Spec. tested under the 20 cm dia. black body, the measuring distance from the probe sensing Head is 30 cm.
溫度感應器 (Temp. Sensor)
- Thermocouple pie.
放射率設定 (Emissivity Setting)
- * By push button. Setting range : 0.20 to 1.00.
- * The default emissivity value is 0.95, which will cover 90% of a typical application.
測量波長區域 (Measurement Wave length Region)
- 6 to 12 micro meter.
距離因素 (Distance Factor)
- D/S : Approx. 7:1. (D - Distance, S - Spot.)
熱電偶 ( type K/J/R/E/T ) 感溫棒 Thermocouple ( type K/J/R/E/T ) Thermometer
| Type |
Resolution |
Range |
Accuracy |
| Thermocouple type K |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1℃) |
| 0.1 ℃ |
-49.9 to 1300.0 ℃ |
± (0.2%+0.5℃) |
| 0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+1.8℉) |
| 0.1 ℉ |
-57.9 to 2372.0 ℉ |
± (0.2%+1℉) |
| Thermocouple type J |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1℃) |
| 0.1 ℃ |
-49.9 to 1150.0 ℃ |
± (0.2%+0.5℃) |
| 0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+1.8℉) |
| 0.1 ℉ |
-57.9 to 2102.0 ℉ |
± (0.2%+1℉) |
| Thermocouple type T |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1℃) |
| 0.1 ℃ |
-49.9 to 400.0 ℃ |
± (0.2%+0.5℃) |
| 0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+1.8℉) |
| 0.1 ℉ |
-57.9 to 752.0 ℉ |
± (0.2%+1℉) |
| Thermocouple type E |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1.3℃) |
| 0.1 ℃ |
-49.9 to 900.0 ℃ |
± (0.2%+0.8℃) |
| 0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+2.8℉) |
| 0.1 ℉ |
-57.9 to 1652.0 ℉ |
± (0.2%+2℉) |
| Thermocouple type R |
1 ℃ |
0 to 600 ℃ |
± (1 %+5℃) |
| 1 ℃ |
601 to 1700 ℃ |
± (1.5%+5℃) |
| 1 ℉ |
32 to 1112 ℉ |
± (1 %+10℉) |
| 1 ℉ |
1113 to 3092 ℉ |
± (1.5 %+10℉) |
Remark :
- a. Accuracy value is specified for the meter only.
- b. Accuracy is tested under the meter's environment temperature within 23 ± 5℃.
- c. Linearity Correction : Memorize the thermocouple's curve into the intelligent CPU circuit,
PT 100 歐姆 白金熱電偶 Platinum PT 100 ohm Thermometer
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-200.0 to 850.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
| 0.1 ℉ |
-328.0 to 1562.0 ℉ |
± ( 0.2 % + 1.0 ℉ ) |
Remark :
- a. Accuracy value is specified for the meter only.
- b. Accuracy is tested under the meter's ambient temperature within 23 ± 5℃.
- c. Linearity Correction : Memorize the Pt 100 ohm's curve into the intelligent CPU circuit.
- d. Pt 100 probe input, cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.
- e. Input socket : DIN 4 pin socket.
- f. 4 wires Pt 100 ohm probe ( model : PT-100 ) is optional.
|
