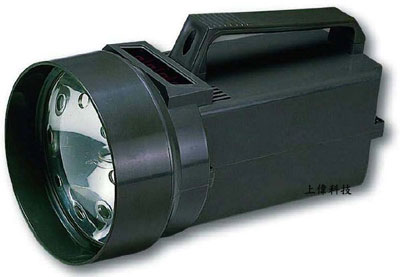

DT-2239A 閃光同步轉速計
特色
-
測量範圍 : 100~10000 RPM/FPM
-
精確度 : ±0.05%
-
4位數紅色LED顯示器
-
工作電源 : AC110V或220V選擇(訂購時需註明)
-
旋轉式旋鈕調整,操作簡易
-
Size：210 X 120 X 120mm
描述
- The model DT-2239A is a microprocessor circuit design, high accuracy, digital readout, light duty STROBOSCOPE/TACHOMETER that is ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors and other equipment used in general industrial maintenance, production, quality control, laboratories and as well as for schools and colleges for demonstrating strobe action.
規格
顯示 (Display)
- 0.3" LED, 4 digits.
轉速計閃爍比 (Stroboscopic Flash Rate)
- 100 to 10,000 flashes per minute (FPM).
精確度 (Accuracy)
- 100 to 5,000 FPM/RPM) : ± 1 digit.
- over 5000 FPM/RPM : ± 0.05% .
解析度 (Resolutio)
- Less than 10,000 FPM/RPM : 1 FPM/RPM.
- Over 10,000 FPM/RPM : 10FPM/RPM
取樣時間 (Sampling Time)
- 1 second
範圍選擇 (Range Select)
- Automation.
電路 (Circuit)
- This stroboscope/tachometer employs an custom one-chip of microcomputer LSI circu & crystal control time base which results in extraordinary accuracy over a wide, dynamic range.
電源供應 (Power Supply)
- 110 Vac 10%, 50/60 Hz. or 220 Vac 10%, 50/60 Hz. or 230 Vac 10%, 50/60 Hz.
電源損耗 (Power Consumption)
- Less than 30 Watt.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 1Kg/2.2 LB.
尺寸 (Size)
- HWD - 21 x 12 x 12 cm (8.3x4.8x4.8 inch).
主體 (Housing)
- Compact and impact plastic injection case with plastic mirror type reflector.
校正 (Calibration)
- Crystal time base and microprocessor circuit, don't necessary take any external calibration process.
附件 (Standard Accessory)
- Operation manual....................... 1 PC.
閃爍管規格 FLASH TUBE SPECIFICATIONS
閃爍管 (Flash tube)
- Xenon lamp.
閃爍持續力 (Flash Duration)
- Approximately 60 to 1,000 microseconds.
閃爍顏色 (Flash color)
- Xenon white 6,500 K degree.
閃爍能源 (Flash energy)
- 4 Watts-seconds (joules).
光束角度 (Beam Angle)
- 80
操作責任週期 (Operating duty Cycle)
- For prolong life and safe operation, please adhere to the following duty cycle:
- Below 1,000 RPM - 30 Minutes. Above 3,600 RPM - 5 Minutes.
- Always allow a 10 minute cooling off period between cycles
閃爍管更換 (Flash tube replacement)
- It is required to change the flash tube when the instrument start to flash irregularly at speeds of 3600 RPM/FPM or more.
操作程序 OPERATIONS PROCEDURES
準備 (Preparation)
- (a) Plug unit into a properly grounded 110V AC, 220V AC or 230V AC outlet.
- (b) Turn the power switch to "on" position.
- (c) Determine the range switch to "Low" or "High" position.
檢查速度 (Checking Speed)
- When checking speed, care must be taken to insure that the strobe is flashing in unison (one to one) with the object being monitored. A Stroboscope will also
stop motion at 2:1, 3:1, 4:1 et., this is normally referred to as harmonies. To be sure of unison, turn the dial until two images appear - this will double the actual
speed. Then lower the flashing rate until a single and stationary image appears - this is the actual true speed.
檢查動作 (Checking Motion)
- For motion analysis, simply locate the actual speed as mentioned above and then turn the dial slowly up or down. This will give a slow motion effect allowing complete inspection.
|
