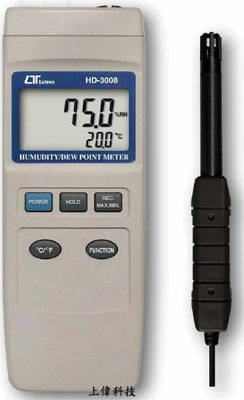

HD-3008 露點/溫溼度計+TYPE K
特色
-
露點範圍 : -25.3 ~ 48.9°C.
-
溼度範圍 : 10.0 ~ 95.0%.±3%
-
溫度範圍 : 0~50 . 0°C .±0.8°C
-
TYPE K範圍 : -100.0 ~ 13000.0°C. ±0.2%
-
讀值鎖定及記錄測量中之最大/最小值.
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 195 x 68 x 30mm.
FEATURES
► Humidity + Dew point + Type K Thermometer are combined into one meter, intelligent.
► Humidity measurement uses a high precision thin-film capacitance sensor for fast response, not depend on air movement past the probe.
► Thin-film capacitance sensor for humidity measurement, high precision.
► Type K thermometer build in temperature linearity & precision cold junction compensation circuit, high accuracy.
► Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
► Large LCD with two display, easy readout.
► Heavy duty & compact housing case, designed for easy carry out & operation.
► Auto shut off saves battery life.
► Records Maximum and Minimum readings with recall.
► Data hold function for stored the desired value on display.
► RS 232 PC serial interface.
► Show the humidity & temperature values on the LCD display at same time.
► Temperature function for ℃ or ℉ be selected by push button on front panel easily.
► Built-in low battery indicator.
► Humidity probe built-in thermistor sensor for temperature measurement, fast response time.
► Wide range both of humidity & temp. measurement.
► Separate humidity & temp. probe, easy operation. & remote measurement.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * 51 mm x 32 mm, 15 mm ( 0.6" ) digit size.
- * dual function LCD display.
測量 (Measurement)
- Humidity meter : R.H. ( Relative Humidity )
- Temperature : ℃ or ℉.
- Dew point : ℃ or ℉.
- Type K thermometer
資料鎖定 (Data hold)
- By push button
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Main instrument : Less than 80% R.H.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type).
電源損耗 (Power Consumption)
- Approx. DC 7 mA.
重量 (Weight)
- 250 g/0.55 LB (battery included).
尺寸 (Size)
- Main instrumen : 195 x 68 x 30 mm ( 7.6 x 2.6 x 1.2 inch )
- Humidity Sensor Probe : : Round 26 mm Dia. x 160 mm.
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Humidity Probe......................... 1 PC.
- Carrying Case.................. 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- 33 % RH CALIBRATION REF. CAPSULES, RHA-33
- 75 % RH CALIBRATION REF. CAPSULES, RHA-75
- Type k thermocouple Probe : TP-01, TP-02A, TP-03, TP-04
- RS232 cable, UPCB-02
- Application software, sw-u801-WIN
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
Resolution |
Accureacy |
| Humidity |
10 to 95 %RH |
0.1 %RH |
< 70% RH : ± 3 %RH
≧70% RH : ± ( 3%rdg + 1 %RH )
|
| Temperature |
0 ℃ to 50 ℃ |
0.1 ℃ |
0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.1 ℉ |
1.5 ℉. |
| Dew Point |
℃ |
-25.3 ℃ to 48.9 ℃ |
0.1 ℉ |
|
| ℉ |
-13.5 ℉ to 120.1 ℉. |
0.1 ℃ |
|
| Type K Thermometer |
℃ |
-100.0 to 1300.0 ℃ |
0.1 ℉ |
-50.0 to 1300.0 ℃ : ± ( 0.2 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ : ± ( 0.2 % + 1 ℃ ) |
| ℉ |
-148.0 to 2372.0 ℉. |
0.1 ℃ |
-58.0 to 2372.0 ℉ : ± ( 0.2 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ : ± ( 0.2 % + 1.8 ℉ ) |
Remark :
- *Dew Point display value is calculated from the Humidity/Temp. measurement automatically.
- * The Dew Point accuracy is sum accuracy value of Humidity & Temperature measurement.
選購 K型感溫棒 THERMOCOUPLE PROBE (type K), optional
- TP-01 : -40 ℃ to 250 ℃ (300℃ short- term). Ultra fast response naked-bead probe.
- TP-02A : -50 ℃ to 900 ℃ ( -50 ℉ to 1650 ℉). Penetration & Immersion applications.
- TP-03 : -50 ℃ to 1200 ℃ ( -50 ℉ to 2200 ℉). High temp., Penetration & immersion.
- TP-04 : -50 ℃ to 400 ℃ ( -50 ℉ to 752 ℉). Precision surface temp. measurement usage.
|
