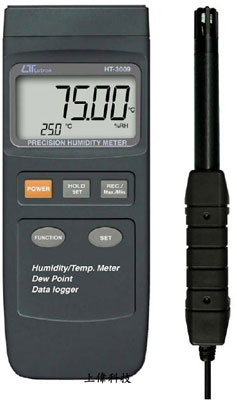

HT-3009 記憶式溫溼度計+露點計
特色
-
溼度範圍 : 0 ~ 100.00% R.H ±2%
-
溫度範圍 : 0 ~ 50.00°C ±0.5%
-
露點範圍 : -25.30 ~ 48.90°C
-
高解析度 , 濕度 0.01% . 溫度0.01°C
-
可記錄1000筆資料
-
雙視窗同時顯示測量溫濕度值
-
讀值鎖定及記錄測量中之最大/最小值.
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 203 x 76 x 38mm.
FEATURES
► The best hygrometer in the world.
► Humidity + Temperature + Dew point are combined into one meter, intelligent and professional.
► 0.01 %RH resolution for the humidity reading, 0.01 degree resolution for the humidity reading.
► Very fast humidity measuring response time.
► 2 %RH humidity accuracy, high precision.
► Dew point measurement.
► Manual and auto data logger.
► Data logger function with flexible sampling time selection, can save max. 1000 reading data with recall.
► Just few panel buttons, easy operation.
► Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
► Large LCD with two display, easy readout.
► Heavy duty & compact housing case, designed for easy carry out & operation.
► Records Maximum and Minimum readings with Recall.
► Auto shut off saves battery life.
► Data hold function for freezing the desired value on display.
► RS 232 PC serial interface.
► Show the humidity & temperature values on the LCD display at same time.
► Built-in low battery indicator. Wide humidity & temp. measuring range.
► Separate humidity & temp. probe, easy operation. & remote measurement.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * 59 mm x 34 mm, 16 mm ( 0.63" ) digit size.
- * dual function LCD display.
測量 (Measurement)
- Humidity meter : %RH. ( Relative Humidity )
- Temperature : ℃ or ℉.
- Dew point : ℃ or ℉.
反應時間 (Response Time)
- Less than 4 seconds. @ Reach the 85% reading value
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the humidity function.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- Manual : Push the data logger button once will save the data one time.
- Auto : 1, 2, 10, 30, 60, 600, 1800, 3600 seconds.
資料鎖定 (Data hold)
- Freeze the display reading by push button.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- Meter : 0 to 50 ℃.
- Probe : 0 to 80 ℃.
操作溼度 (Operating Humidity)
- Main instrument : Less than 85% R.H.
- Probe : 0 to 100 %RH.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type).
電源損耗 (Power Consumption)
- Approx. DC 4.6 mA.
重量 (Weight)
- 313 g/0.69 LB. @ Battery is not included.
尺寸 (Size)
- Main instrumen : 203 x 76 x 38 mm ( 8.0 x 3.0 x 1.5 inch ).
- Humidity Sensor Probe : : 197 mm ( 7.8 inch ) in length.
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Humidity Probe......................... 1 PC.
- Carrying Case.................. 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- RS232 cable, UPCB-02
- USB cable, USB-01
- Data Acquisition software, SW-801-WIN
- Data Logger software, SW-DL2005
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
Resolution |
Accureacy |
| Humidity |
0 % to 100 % R.H. |
0.01 %RH |
± 2% R.H.
@ 20 %RH to 80 %RH @ 10 ℃ to 40 ℃
|
| Temperature |
0 ℃ to 50 ℃ |
0.01 ℃ |
± 0.5 ℃. @ 5 ℃ to 35 ℃ |
| 32 ℉ to 122 ℉. |
0.01 ℉ |
|
| Dew Point |
℃ |
-25.3 ℃ to 48.9 ℃ |
0.01 ℉ |
|
| ℉ |
-13.5 ℉ to 120.1 ℉. |
0.01 ℃ |
|
|
