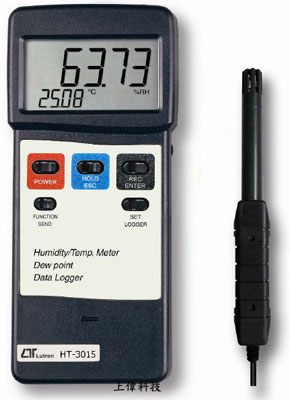

HT-3015 記憶式溫溼度計+露點計
特色
-
溼度範圍 : 0 ~ 95.00% ±3%
-
溫度範圍 : 0.01 ~ 50.00°C ±0.8%
-
露點範圍 : -25.30 ~ 48.90°C
-
高解析度 , 濕度 0.01% . 溫度 0.01°C
-
可記錄 1000 筆資料
-
雙視窗同時顯示測量溫濕度值
-
讀值鎖定及記錄測量中之最大/最小值.
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 203 x 76 x 38mm.
FEATURES
Humidity + Temperature + Dew point are combined into one meter, intelligent and professional.
0.01 %RH resolution for the humidity reading, 0.01 degree resolution for the humidity reading.
Fast humidity measuring response time.
High accuracy and high precision.
Dew point measurement.
Manual and auto manual data logger.
Data logger function with flexible sampling time selection, can save max. 1000 reading data with recall.
Just few panel buttons, easy operation.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Large LCD with two display, easy readout.
Heavy duty & compact housing case, designed for easy carry out & operation.
Records Maximum and Minimum readings with Recall.
Auto shut off saves battery life.
Data hold function for freezing the desired value on display.
RS 232 PC serial interface.
Show the humidity & temperature values on the LCD display at same time.
Built-in low battery indicator. Wide humidity & temp. measuring range.
Separate humidity & temp. probe, easy operation. & remote measurement.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * LCD size : 61 mm x 35 mm
- * dual function LCD display.
測量 (Measurement)
- Humidity meter : %RH. ( Relative Humidity )
- Temperature : ℃ or ℉.
- Dew point : ℃ or ℉.
反應時間 (Response Time)
- 5 to 30 seconds typically. @ Reach the 85% reading value
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the humidity function.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- Manual : Push the data logger button once will save the data one time.
- Auto : 1, 2, 10, 30, 60, 600, 1800, 3600 seconds.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- Meter : 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Main instrument : Less than 85% R.H.
- Probe : 0 to 95 %RH.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type).
電源損耗 (Power Consumption)
- Approx. DC 4.6 mA.
重量 (Weight)
- 306 g/0.67 LB.. @ Battery is included.
尺寸 (Size)
- Main instrumen : 180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch)
- Humidity Sensor Probe : : 197 mm ( 7.8 inch ) in length.
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Humidity Probe......................... 1 PC.
- Carrying Case.................. 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- RS232 cable, UPCB-01
- USB cable, USB-01
- Data Acquisition software, SW-801-WIN
- Data Logger software, SW-DL2005
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
Resolution |
Accureacy |
| Humidity |
0 % to 95 % R.H. |
0.01 %RH |
< 70% RH : ± 3 %RH
≧70% RH : ± ( 3%rdg + 1 %RH )
|
| Temperature |
0 ℃ to 50 ℃ |
0.01 ℃ |
± 0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.01 ℉ |
± 1.5 ℉. |
| Dew Point |
℃ |
-25.3 ℃ to 48.9 ℃ |
0.01 ℉ |
|
| ℉ |
-13.5 ℉ to 120.1 ℉. |
0.01 ℃ |
|
Remark :
- *Dew Point display value is calculated from the Humidity/Temp. measurement automatically.
- * The Dew Point accuracy is sum accuracy value of Humidity & Temperature measurement.
|
