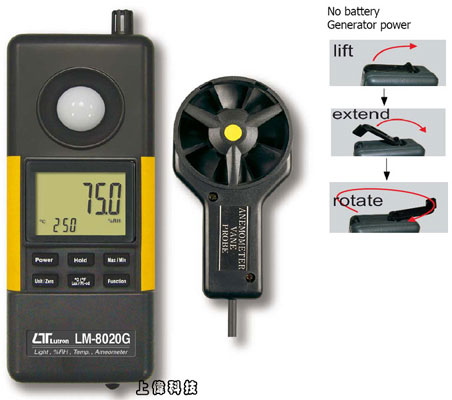

LM-8020G 綠能風速/照度/溫溼度/溫度計
特色
-
可由手搖發電機提供電源，亦可使用電池
-
手搖發電機10秒以上，可提供短暫待測電量
-
風速 0.4 ~ 25.0 米/秒 .±3% (溫度 0 ~ 50°C)
-
溼度 10.0 ~ 95.0% .±4% (溫度 0 ~ 50.0°C)
-
照度 0 ~ 20000 LUX .±5% (自動換檔)
-
溫度(K Type) -100.0°C ~ 1300.0°C. ±1%
-
讀值鎖定及記錄測量中之最大/最小值.
-
雙視窗顯示器,同時顯示風速(溼度)/溫度值.
-
Size : 170 x 70 x 39mm.
FEATURES
Hybrid power, power supply from green power ( handy generator ) or battery. If power source come from " Green power ", battery is no need. Wind-up the generator 20 seconds will offer several minutes energy typically.
4 in 1 professional measuring instrument: Anemometer, Hygrometer, Thermometer, and Light meter.
Anemometer use low-friction ball bearing mounted wheel design provides high accuracy at high and low air velocity.
Anemometer use the separate probe, convenient for measurement.
Light meter use exclusive photo diode and color correction filter light sensor, spectrum meets C.I.E. photopic.
High precision humidity sensor with fast response time.
Standard type K (NiCr-NiAl) thermocouple input jack suitable for all kinds of type K probe.
Concise and compact buttons arrangement, easy operation.
Memorize the maximum and minimum value with recall.
℃/℉ detection by pressing button on the front panel.
Lux/Feet-candle selection by pressing button on the front panel.
Air velocity measuring units selection by pressing button on the front panel for five kinds of units.
Multi channel display for relative humidity and temperature measured values or air velocity and temperature measured values at the same time.
Zero button design makes light meter calibration.
Hold function to freeze the current reading value.
Microprocessor circuit assures high accuracy and reliable performance.
Large LCD, dual function display.
Auto power shut off to battery life or manual power off.
Using the durable, long-lasting components and a strong lightweight ABS-plastic housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- 40 mm x 32 mm LCD (Liquid crystal display).
測量 (Measurement)
- Anemometer, Humidity, Temperature. Light
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum and Minimum reading values can be saved and retrieved by record function.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
過載輸入指示 (Over Input Display)
- "- - - -" symbol on the display.
取樣時間 (Sampling Time)
- Approx. 1 sec
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Max. 80% RH.
電源供應 (Power Supply) * Hybrid power
- Green power : Power from the handy generator, battery is no need.
- Battery power : DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent. * Alkaline or heavy duty type.
電源損耗 (Power Consumption)
- Battery power : Approx. DC 10 mA.
重量 (Weight)
- 432 g/0.95 LB ( w/o battery ).
尺寸 (Size)
- Meter : 170 x 70 x 39 mm ( 6.7 x 2.8 x 1.1.5 inch).
- Anemometer probe head : Round, 72 mm Dia.
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Hard carrying case.................... 1 PC
選購附件 (Optional & accessories Temp. Probe)
- Type temperature probe :
- TP-01 : Naked-bead, -40 to 250 ℃Type k thermocouple Probe : TP-01, TP-02A, TP-03, TP-04
- TP-02A : Penetration, -50 to 900 ℃
- TP-03 : Penetration, -50 to 1200 ℃
- TP-04 : Surface, -50 to 400 ℃
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
Resolution |
| Air velocity |
m/s |
0.4 - 25.0 m/s |
0.1 m/s |
| km/h |
1.4 - 90.0 km/h |
0.1 km/h |
| MPH |
0.9 - 55.9 mile/h |
0.1 MPH |
| knots |
0.8 - 48.6 knots |
0.1 knots |
| ft/min |
80 - 4930 ft/min |
1 ft/min |
| Temperature
( Semiconductor)
|
32 to 122 ℉ |
0.1 ℉ |
| 0 to 50 ℃ |
0.1 ℃ |
| Measurement |
Range |
Resolution |
| Humidity |
% RH |
10 to 95 %RH |
0.1 %RH |
| Temperature
( Semiconductor)
|
32 to 122 ℉ |
0.1 ℉ |
| 0 to 50 ℃ |
0.1 ℃ |
| Light
* auto range
|
Lux |
0 to 2,200 Lux |
1 Lux |
| 1,800 to 20,000 Lux |
10 Lux |
| Ft-cd |
0 to 204.0 Fc |
0.1 Ft-cd |
| 170 to 1,860 Fc |
1 Ft-cd |
| Temperature ( Type K ) |
-148 to 2372 ℉ |
0.1 ℉ |
| -100 to 1300 ℃ |
0.1 ℃ |
| Measurement |
Range |
Accureacy |
| Air velocity |
0.4 - 25.0 m/s |
≦ 20 m/s : ± 3% F.S.
> 20 m/s : ± 4% F.S.
|
| 1.4 - 90.0 km/h |
| 0.9 - 55.9 mile/h |
| 0.8 - 48.6 knots |
| 80 - 4930 ft/min |
| 32 to 122 ℉ |
± 2.5 ℉ |
| 0 to 50 ℃ |
± 1.2 ℃ |
| Humidity |
10 to 95 %RH |
< 70% RH : ± 4 %RH
≧70% RH : ± ( 4%rdg + 1.2 %RH )
|
| 32 to 122 ℉ |
± 2.5 ℉ |
| 0 to 50 ℃ |
± 1.2 ℃ |
| Light |
0 to 20,000 Lux |
± 5% rdg ± 8 dgt |
| 0 to 1,860 Fc |
| Temperature ( Type K ) |
-148 to 2372 ℉ |
± (1% rdg + 2℉) |
| -100 to 1300 ℃ |
± (1% rdg + 1℃) |
Remark :
ft/min : feet per minute ; MPH : miles per hour ; m/s : meters per second ; knots : nautical miles per hour ; km/h : kilometers per hour ; Ft-cd : feet candle
|
