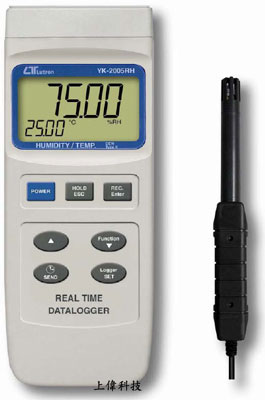

YK-2005RH 記憶式溫溼度計+露點計
特色
-
記錄 16000 筆資料 , 含時間記錄 (年月日時分秒)
-
溼度範圍 : 0 ~ 95.00% R.H ±3%
-
溫度範圍 : 0 ~ 50.00°C ±0.8%
-
露點範圍 : -25.30 ~ 48.90°C
-
溫度 : Type K : -50.0 ~ 1300.0°C ±0.2%
Type J : -100.0 ~ 1100.0°C ±0.2%
-
讀值鎖定及記錄測量中之最大/最小值.
-
RS-232 / USB 輸出介面.(軟體選購)
-
Size : 203 x 76 x 38mm.
FEATURES
Humidity, Temperature, Dew point , 3 function measurement are combined into one meter, intelligent and professional.
Humidity/Temp. function : 0.01 %RH resolution for the humidity reading, 0.01 degree resolution for the Temp. reading.
Type K, Type J thermocouple thermometer.
Fast humidity measuring response time.
Real time data logger, build in clock ( hour-min.-sec., year-month-date ).
Auto manual data record, 16,000 Data logger no.
Wide sampling time adjustment range from two seconds to 8 hours 59 minutes 59 seconds.
RS232 computer interface.
Can default auto power off or manual power off.
Multi function with easy operation
Large LCD with multiple display.
Data hold, record max. and min. reading.
Microcomputer circuit provides special function & offer high accuracy.
Power by UM3 ( 1.5 V ) x 4 batteries or DC 9V adapter.
RS232 PC serial interface.
Separate probe, easy for operation of different measurement environment.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * LCD size : 58 mm x 34 mm.
測量 (Measurement)
- Humidity meter : %RH. ( Relative Humidity )
- Temperature : ℃ or ℉.
- Dew point : ℃ or ℉.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- 2 sec to 8 hour 59 min. 59 sec. @ Auto datalogger
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the humidity function and the type K/J thermometer.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- Meter : 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 4 PCs, ( Heavy duty type ).
- DC 9V adapter input. @ AC/DC power adapter is optional.
電源電流 (Power Current)
- Approx. DC 21.5 mA @ Main instrument.+ Type K/J probe
- DC 27.5 mA. @ Main instrument. + Humidity probe.
重量 (Weight)
- 515 g/ 1.13 LB. @ Battery is included.
尺寸 (Size)
- Main instrument : 203 x 76 x 38 mm
- Humidity/Temp. probe : Round 26 mm Dia. x 160 mm.
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
- Humidity/Temp.Probe......................... 1 PC.
- Carrying Case.................. 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- Type K thermocouple probe.
- AC to DC 9V adapter.
- RS232 cable, UPCB-02
- USB cable, USB-01
- Data Acquisition software, SW-801-WIN
- Data Logger software, SW-DL2005
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
Resolution |
Accureacy |
| Humidity |
5 % to 95 % R.H. |
0.01 %RH |
< 70% RH : ± 3 %RH
≧70% RH : ± ( 3%rdg + 1 %RH )
|
| Temperature |
0 ℃ to 50 ℃ |
0.01 ℃ |
± 0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.01 ℉ |
± 1.5 ℉. |
| Dew Point |
℃ |
-25.3 ℃ to 48.9 ℃ |
0.01 ℉ |
|
| ℉ |
-13.5 ℉ to 120.1 ℉. |
0.01 ℃ |
|
Remark :
- *Dew Point display value is calculated from the Humidity/Temp. measurement automatically.
- * The Dew Point accuracy is sum accuracy value of Humidity & Temperature measur
Type K/J thermometer
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
| Type J |
0.1 ℃ |
-100.0 to 1100.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
|
