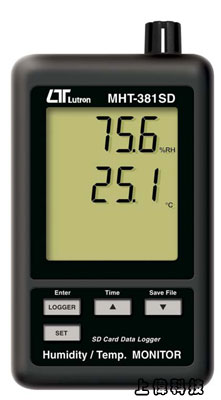

MHT-381SD 記憶式溫溼度計
簡介
-
即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
-
溼度 10 ~ 90% RH.±4%
-
溫度 0°C ~ 50.0°C. ±0.8%
-
壁掛 / 桌立兩用
-
讀值鎖定及記錄測量中之最大/最小值.
-
RS-232 / USB 連接介面.(軟體選購)
-
Size : 132 x 80 x 32mm.
FEATURES
Monitor with real time data logger, save the measuring data along the time information ( year, month, date, hour, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. user can make the further data or graphic analysis by themselves.
Show Humidity and Temperature value in the same LCD.
0.1 %RH resolution for the humidity reading, 0.1 degree resolution for the Temp. reading.
Used the precision capacitance type humidity sensor, professional and high accuracy.
SD card capacity : 1 GB to 16 GB.
Sampling adjustment : 5/10/30/60/120/300/600 seconds and auto function.
Large LCD display, easy readout.
Microcomputer circuit, high reliability.
Low power consumption and long battery life when use battery power.
DC 1.5V ( UM-4, AAA ) battery x 6 PCs or DC 9V adapter in.
RS232/USB computer interface.
Patented
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * LCD size : 60 mm x 50 mm
測量 (Measurement)
- Humidity and Temperature
資料集錄器取樣時間 (Sampling Time of Data Logger)
- 5/10/30/60/120/300/600 seconds or Auto.
- * Default sampling time is 60 seconds.
- * The " Auto " sampling . means when the measuring value is changed ( > ± 1 %RH or > ± 1 ℃ ) will save the data one time only.
資料錯誤數 (Data error no.)
- ≦ 0.1 % no. of total saved data typically.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Set beep Sound ON/OFF
- * Set SD card Decimal character
- * Set temperature unit to ℃ or ℉
- * Set RS232 data output ON/OFF
顯示升級時間 (Update Time of Display)
- Approx. 1 second if measuring data is changed.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- Meter : 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 90% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電池壽命 (Battery life)
- If use the new battery ( alkaline type ) and sampling time set to 60 seconds, the battery life will be > one month typically.
重量 (Weight)
- 282 g/0.62 LB.
體積 (Dimension)
- 132 x 80 x 32 mm ( 5.2 x 3.1 x 1.3 inch )
附件 (Standard Accessory)
- * Instruction manual.............................. 1 PC
- * Hanging unit ( with sticker )..........1 PC
選購附件 (Optional & accessories Temp. Probe)
- * SD Card ( 2 GB )
- * AC to DC 9V adapter.
- * USB cable, USB-01.
- * RS232 cable, UPCB-02.
- * Data Acquisition software, SW-U811-WIN.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
濕度計 (Humidity)
- Range : 10 % to 90 % R.H.
- Resolution : 0.1 % R.H.
- Accuracy :
- < 70% RH : ± 3 %RH
- ≧70% RH : ± ( 3%rdg + 1 %RH )
溫度計 (Temperature)
- Range : 0 ℃ to 50 ℃,32 ℉ to 122 ℉.
- Resolution : 0.1 degree
- Accuracy : ℃ - ± 0.8 ℃. ; ℉ - ± 1.5 ℉.
|
