RHA-33/75 溼度校正瓶
特色
-
RHA-33：溼度33%溼度校正瓶.
-
RHA-75：溼度75%溼度校正瓶.
-
Size：直徑70mm x 高52.

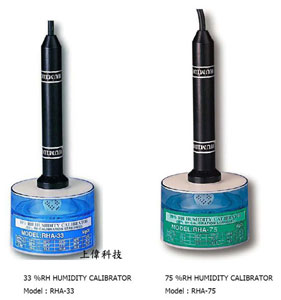

33 %RH HUMIDITY CALIBRATOR, Model : RHA-33
75 %RH HUMIDITY CALIBRATOR, Model : RHA-75
一般規格
應用 (Applications)
-
Precision 33% RH, 75% RH CALIBRATION STANDARD for the Humidity Instruments : HT-3003, HT-3004, HT-3005, HT-3006, HA-702, HA-703, HA-704.
尺寸 (Size)
-
Round 70 mm dia. x 52 mm (Round 2.8 inch dia. x 2.0 inch.)
重量 (Weight)
-
120 g ( 0.3 LB ).
內容 (Content)
-
RHA-33 Over saturated salt solution of MgCl.
-
RHA-75 Over saturated salt solution of NaCl.
% RH 對應不同的溫度 (% RHversus TEMPERATURE)
33 %RH HUMIDITY CALIBRATOR (33 %RH CALIBRATION STANDARD) Model : RHA-33 MgCl
| Temp. ℃ |
15 ℃ |
20 ℃ |
25 ℃ |
30 ℃ |
35 ℃ |
| Temp. ℉ |
59 ℉ |
68 ℉ |
77 ℉ |
86 ℉ |
95 ℉ |
| % RH |
33.3 |
33.1 |
32.8 |
32.4 |
32.1 |
75 %RH HUMIDITY CALIBRATOR (75 %RH CALIBRATION STANDARD) Model : RHA-75 NaCl
| Temp. ℃ |
15 ℃ |
20 ℃ |
25 ℃ |
30 ℃ |
35 ℃ |
| Temp. ℉ |
59 ℉ |
68 ℉ |
77 ℉ |
86 ℉ |
95 ℉ |
| % RH |
75.6 |
75.5 |
75.3 |
75.1 |
74.9 |
|
