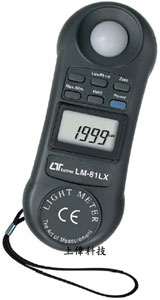

LM-81LX 掌上型照度計

特色

• 極為輕巧細緻的外觀設計,允許單手操作.

• 測量範圍 : 0 ~ 20000 LUX (照度)

                             0 ~ 2000 Ft-cd (呎/燭光).

• 精確度 : ±5%.

• 自動換檔功能.

• 感光器光譜反應符合C.I.E規範.

• 讀值鎖定及記錄測量中之最大/最小值.

• Size : 156 x 60 x 33mm.

FEATURES

► Tiny bone shape with lightweight and small size case design are suitable for handling with one hand.

► Hand cord design provides extra protection to the instrument especially for user one hand operation.

► Exclusive photo diode and color correction filter light sensor, spectrum meets C.I.E. photopic.

► Unit : Lux, Feet-candle.

► 0 to 20,000 Lux, auto range.

► Build in microprocessor circuit assures excellent performance and accuracy.

► Concise and compact buttons arrangement, easy operation.

► Memorize the maximum and minimum value with recall.

► Zero adjustment.

► Hold function to freeze the current reading value easily.

一般規格

顯示 (Display)

LCD display, 8 mm digit height.

測量 (Measurement)

Lux, Foot-candle.

過載輸入指示 (Over Input Display)

Indication of "- - - - "

操作溫度 (Operating Temp. )

 0 to 50 ℃. (32 to 122° F)

操作溼度 (Operating Humidity)

Max. 80% RH.

電源供應 (Power Supply)

006P DC 9V battery (Heavy duty type)

電源損耗 (Power Consumption)

Approx. DC 6.2 mA

重量 (Weight)

160g (battery included)

體積 (Dimension)

HWD 156x60x33 mm (6.14x2.36x1.29 inch).

附件 (Standard Accessory)

Instruction manual.............................. 1 PC

選購附件 (Optional  accessories)

Carrying case ( CA-52A )

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
